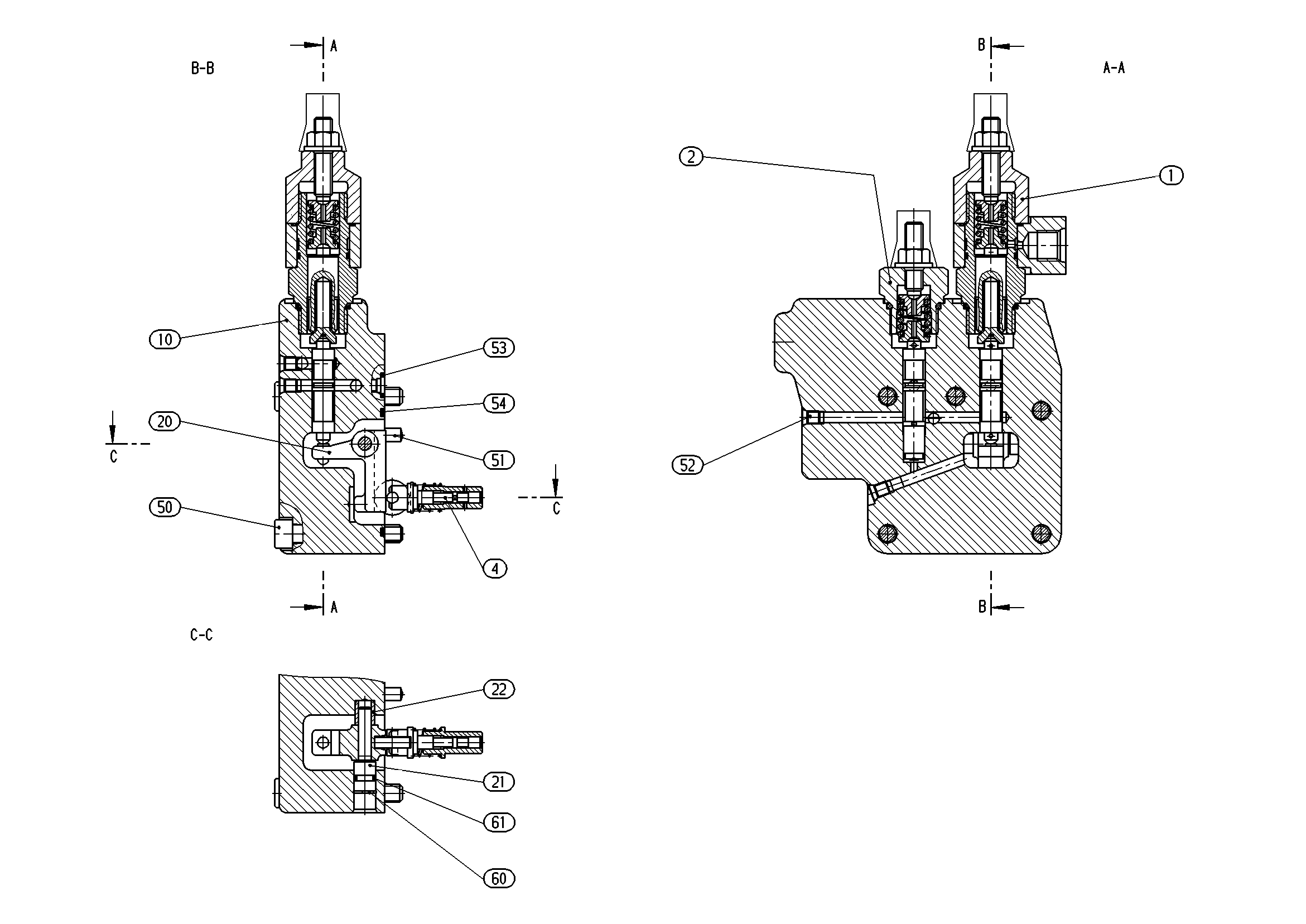

Assembly
REGULATORR902105225
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902229790 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902081425 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| 5 | R909431281 | BEARING BOLT | 1 | |
| 6 | R909431286 | BUSHING | 1 | |
| 7 | R909447093 | MEASURING PISTON Assembly parts list →L | 1 | |
| R902081900 | CONTROL HOUSING | 1 | ||
| 15 | R909083044 | SOCKET HEAD CAP SCREW | 5 | |
| 16 | R913009676 | STRAIGHT PIN | 2 | |
| 17 | R909831318 | DOUBLE BREAK-OFF PLUG | 5 | |
| 18 | R909157512 | O-RINGD | 3 | |
| 19 | R902600656 | O-RINGD | 1 | |
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
