Assembly

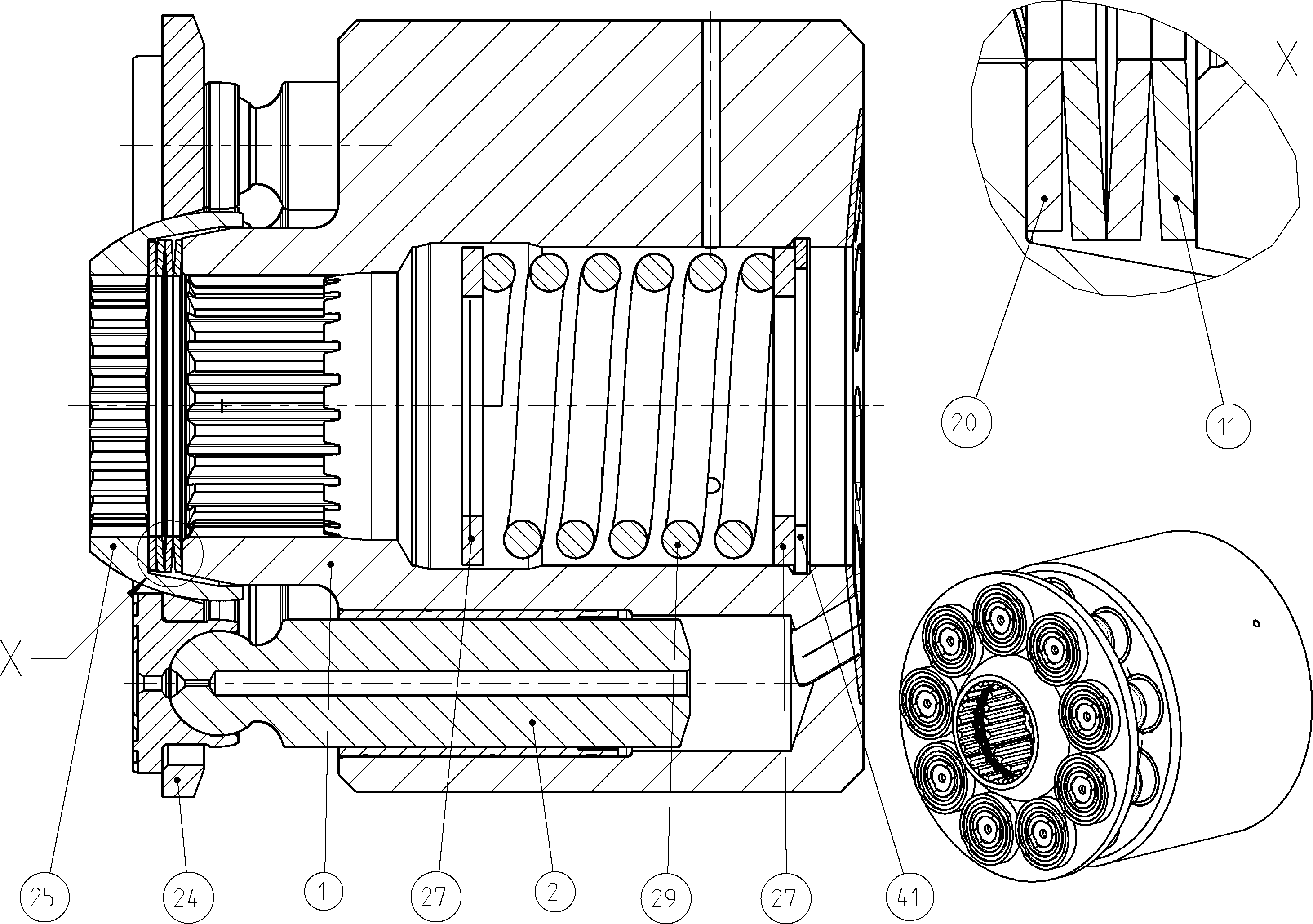

ROTARY GROUPR902105521
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103461 | CYLINDER | 1 | ||
| R902118910 | PISTON PAD | 9 | ||
| R902105611 | CUP-SPRING STACK | 1 | ||
| R902105530 | SHIM RING | 1 | ||
| R902105531 | SHIM RING | 1 | ||
| R902105532 | SHIM RING | 1 | ||
| R902105533 | SHIM RING | 1 | ||
| R902213297 | RETAINING PLATE | 1 | ||
| R902240834 | RETAINING BALL | 1 | ||
| R902074528 | WASHER | 2 | ||
| R902073310 | COMPRESSION SPRING | 1 | ||
| R909083403 | RETAINING RING | 1 |
