Assembly

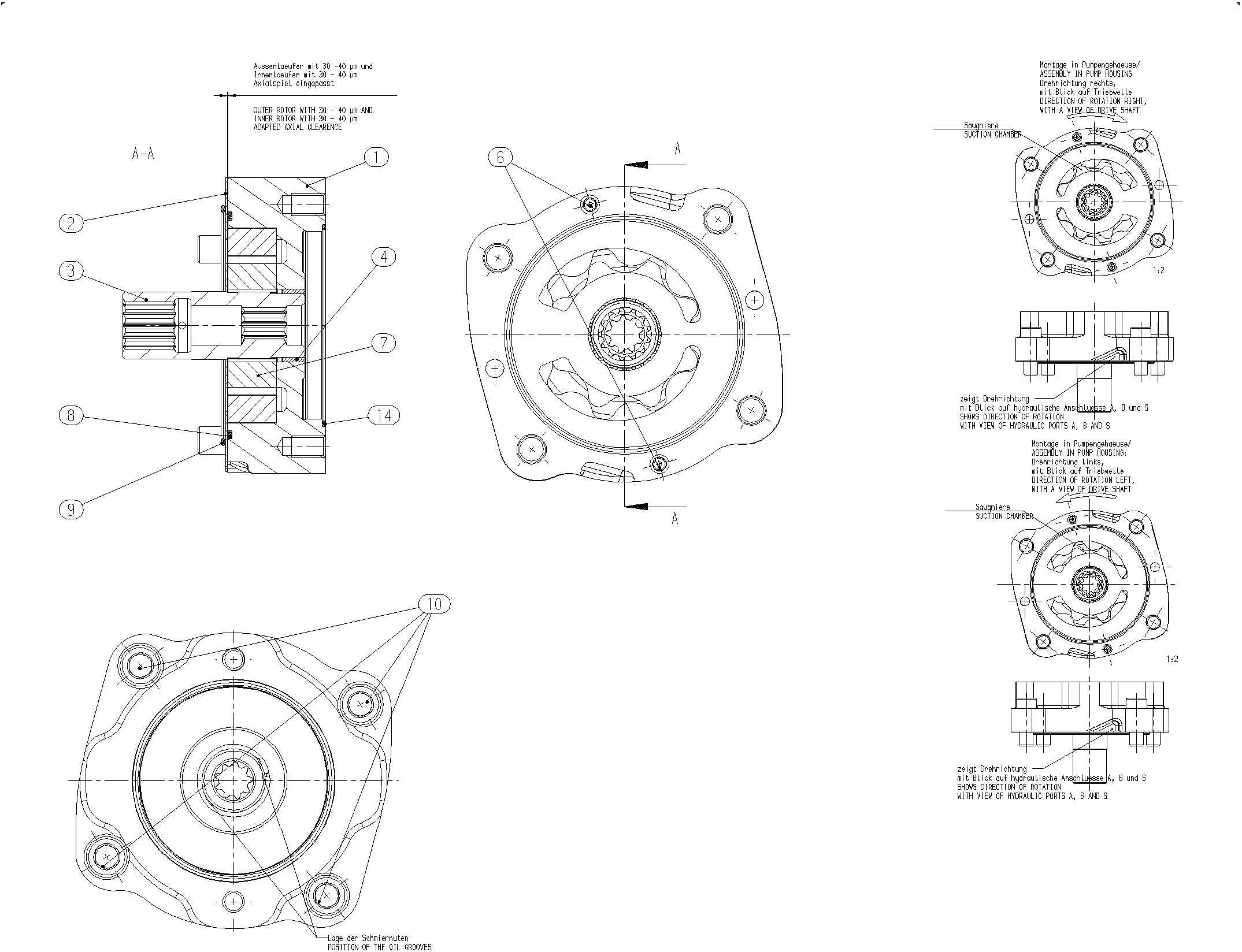

INTERNAL GEAR PUMPR902105736
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902105839 | INTERMEDIATE FLANGE | 1 | ||
| R902114104 | WEAR PLATE | 1 | ||
| R902095392 | THROUGH DRIVE COUPLING | 1 | ||
| R902095408 | BUSHING | 1 | ||
| R913007069 | HOLDING PLUG | 2 | ||
| R902602782 | WHEEL SET | 1 | ||
| R909086756 | O-RINGD | 1 | ||
| R909086823 | O-RINGD | 1 | ||
| R909083088 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157997 | O-RINGD | 1 |
