Assembly

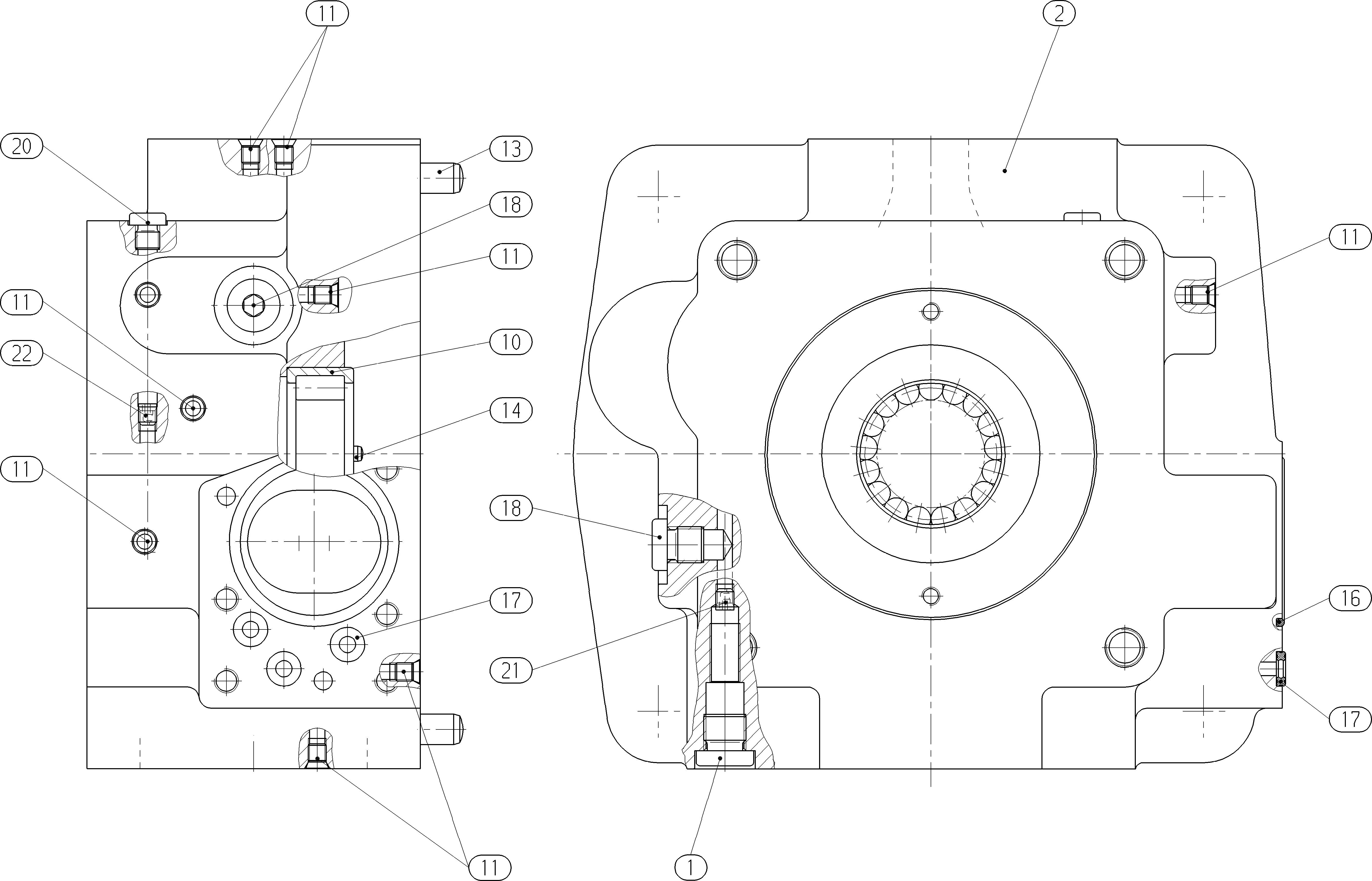

CONNECTION PLATE, RLR902106700
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909151979 | SCREW PLUG | 1 | ||
| R902106501 | CONNECTION PLATE, RL | 1 | ||
| R909156310 | CYL. ROLLER BEARING | 1 | ||
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 5 | |
| R913009671 | STRAIGHT PIN | 2 | ||
| R909087755 | STRAIGHT PIN | 1 | ||
| R909152464 | O-RINGD | 1 | ||
| R902602890 | R-RING | 3 | ||
| 19 | R909151692 | SCREW PLUGD | 2 | |
| R909154024 | SCREW PLUGD | 1 | ||
| R909157345 | NOZZLE | 1 | ||
| R909157343 | NOZZLE | 1 | ||
| 98 | R902002467 | SEAL KIT | 1 |
