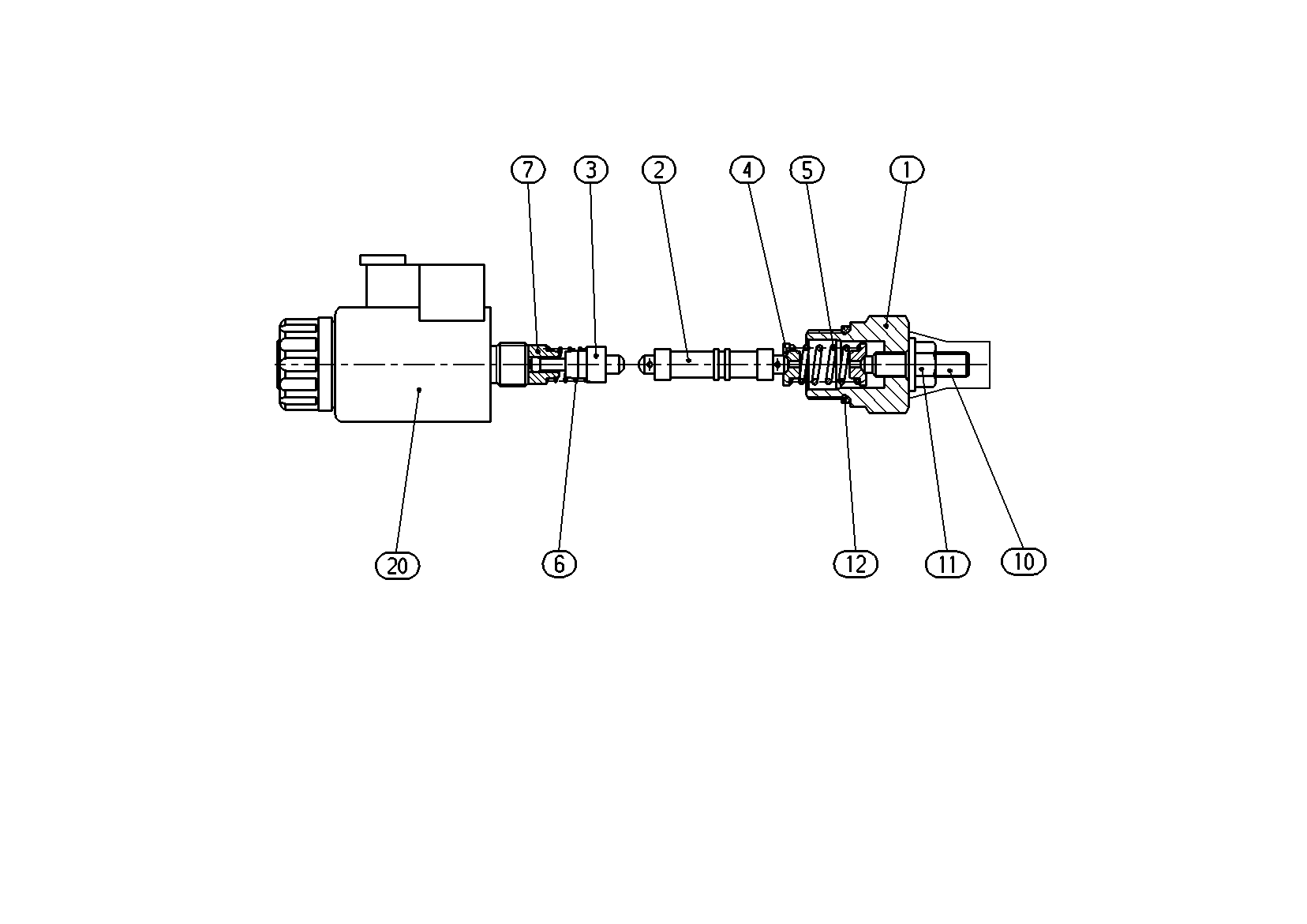

Assembly
CONTROL ELEMENTR902107269
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909444161 | SCREW PLUG | 1 | |
| R909432439 | CONTROL PISTON | 1 | ||
| R902070328 | SPRING BOLT | 1 | ||
| 4 | R902066558 | SPRING BOLT | 2 | |
| R909444559 | COMPRESSION SPRING | 1 | ||
| R909436459 | COMPRESSION SPRING | 1 | ||
| R902070334 | SPRING DISK | 1 | ||
| R909440424 | SETSCREW | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| R909083758 | O-RINGD | 1 | ||
| R902603442 | PROPORTIONAL SOLENOID | 1 |
