Assembly

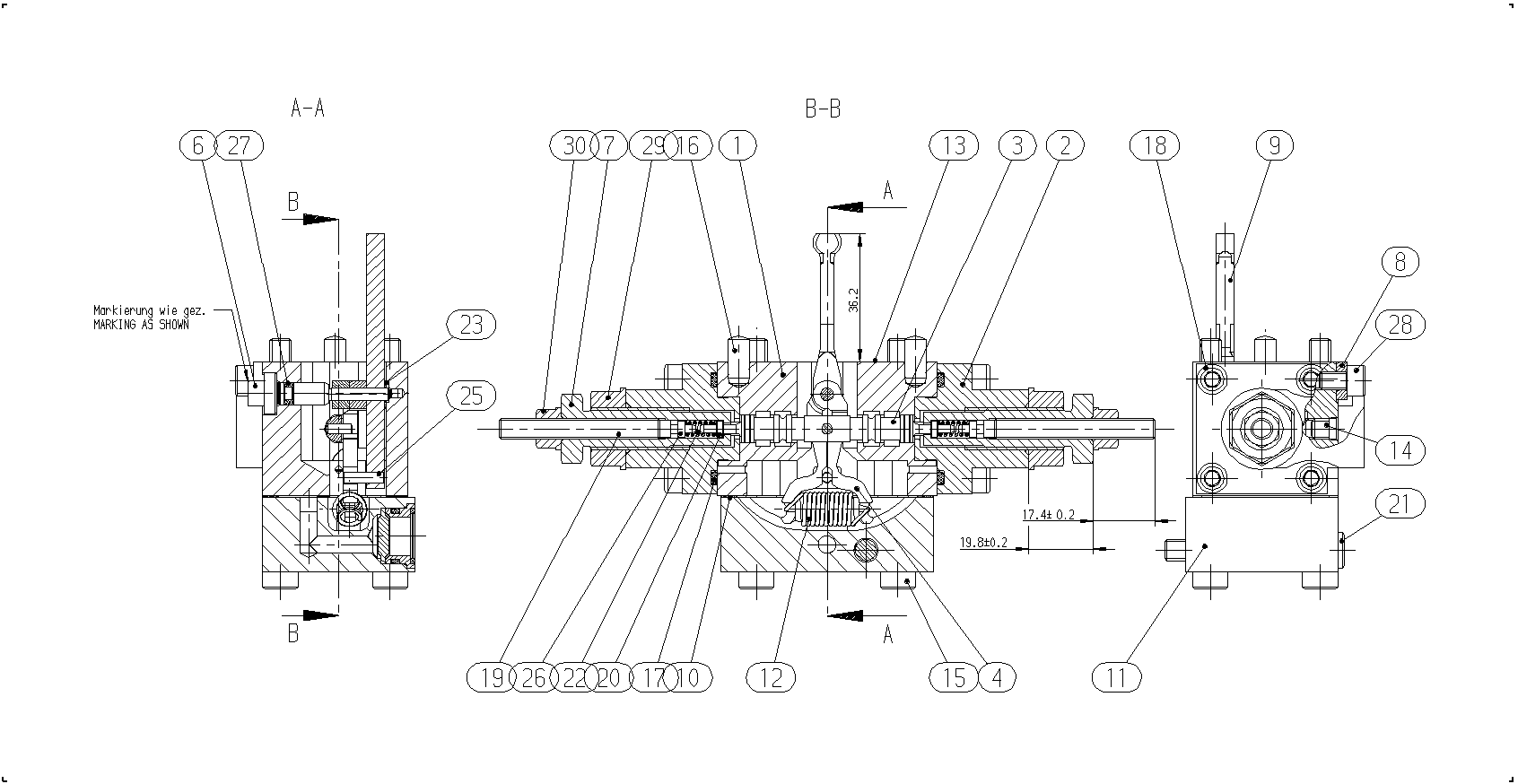

CONTROL MODULER902107291
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902254790 | HOUSING ASSEMBLY GROUP | 1 | ||
| R902107372 | HOUSING | 2 | ||
| R902056410 | CONTROL PISTON | 1 | ||
| R902162699 | LEVER PAIR | 1 | ||
| R902236102 | ECCENTRIC PIN | 1 | ||
| R902053238 | ADJUSTING SCREW | 2 | ||
| R902044854 | WASHER | 1 | ||
| R902113673 | FEEDBACK LEVER | 1 | ||
| R902603830 | SEALD | 1 | ||
| R902107492 | COVER | 1 | ||
| R902057694 | EXTENSION SPRING | 1 | ||
| R902603829 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083764 | O-RINGD | 2 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 8 | ||
| R902053239 | SETSCREW | 2 | ||
| R902053237 | SPRING DISK | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R909443395 | COMPRESSION SPRING | 2 | ||
| R902051252 | WASHER | 1 | ||
| R902051253 | WASHER | 1 | ||
| R902051254 | WASHER | 1 | ||
| R902051255 | WASHER | 1 | ||
| R902051256 | WASHER | 1 | ||
| R902064222 | WASHER | 1 | ||
| R909443400 | SPRING DISK | 2 | ||
| R909086301 | O-RINGD | 1 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 | ||
| R909087405 | SEALING NUT | 2 | ||
| R909152425 | SEALING NUT | 2 |
