Assembly

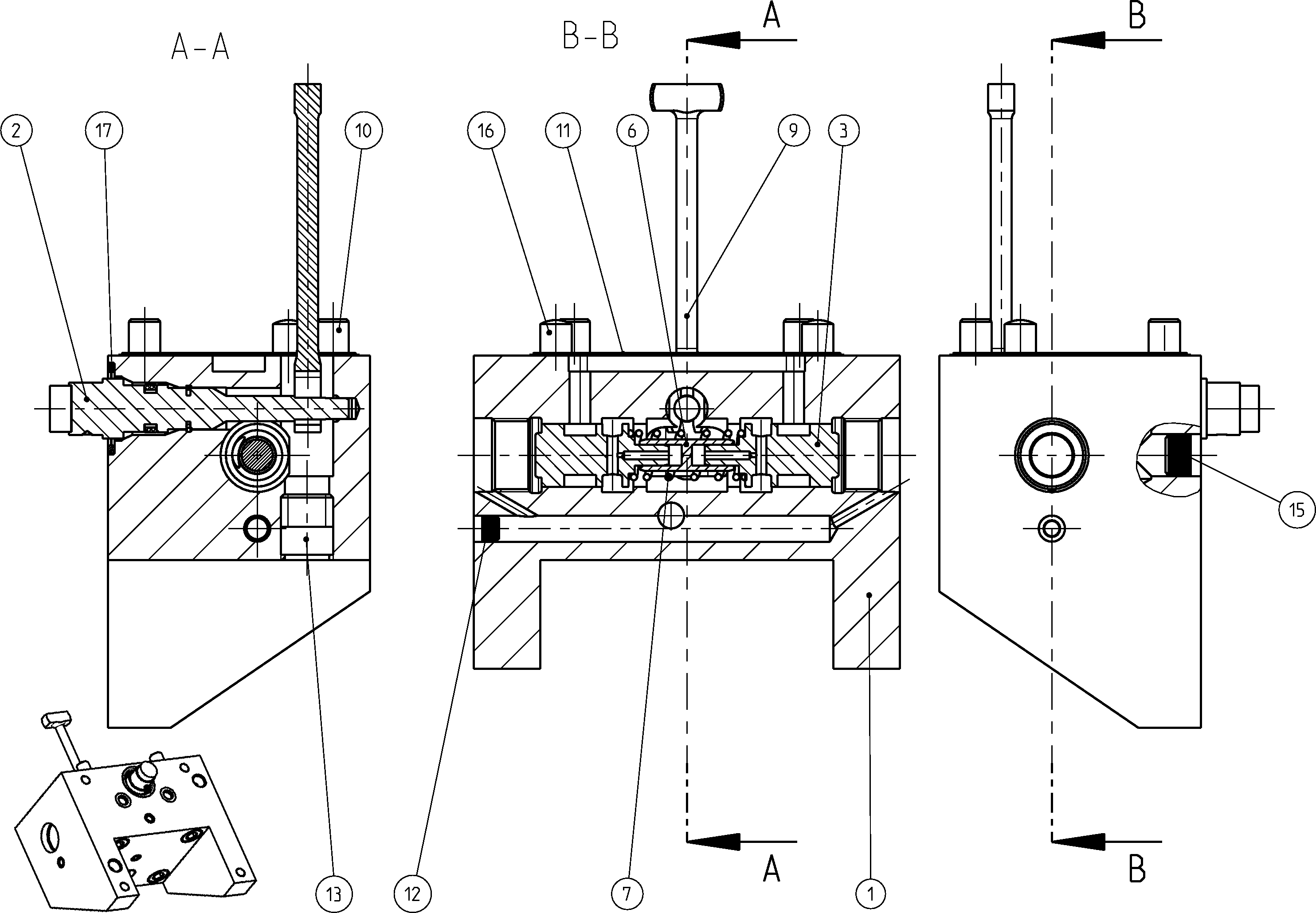

BASIC UNITR902107482
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902104619 | HOUSING | 1 | ||
| R902113605 | SENSOR SHAFT | 1 | ||
| R902190688 | CONTROL PISTON | 2 | ||
| R902102471 | SLEEVE | 1 | ||
| R902168342 | COMPRESSION SPRING | 1 | ||
| R902107359 | LEVER | 1 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R902603825 | SEALD | 1 | ||
| R902603684 | SEALING PLUG | 3 | ||
| R909831349 | PLUG | 1 | ||
| R902603687 | SEALING PLUG | 2 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909086523 | O-RING | 1 |
