Assembly

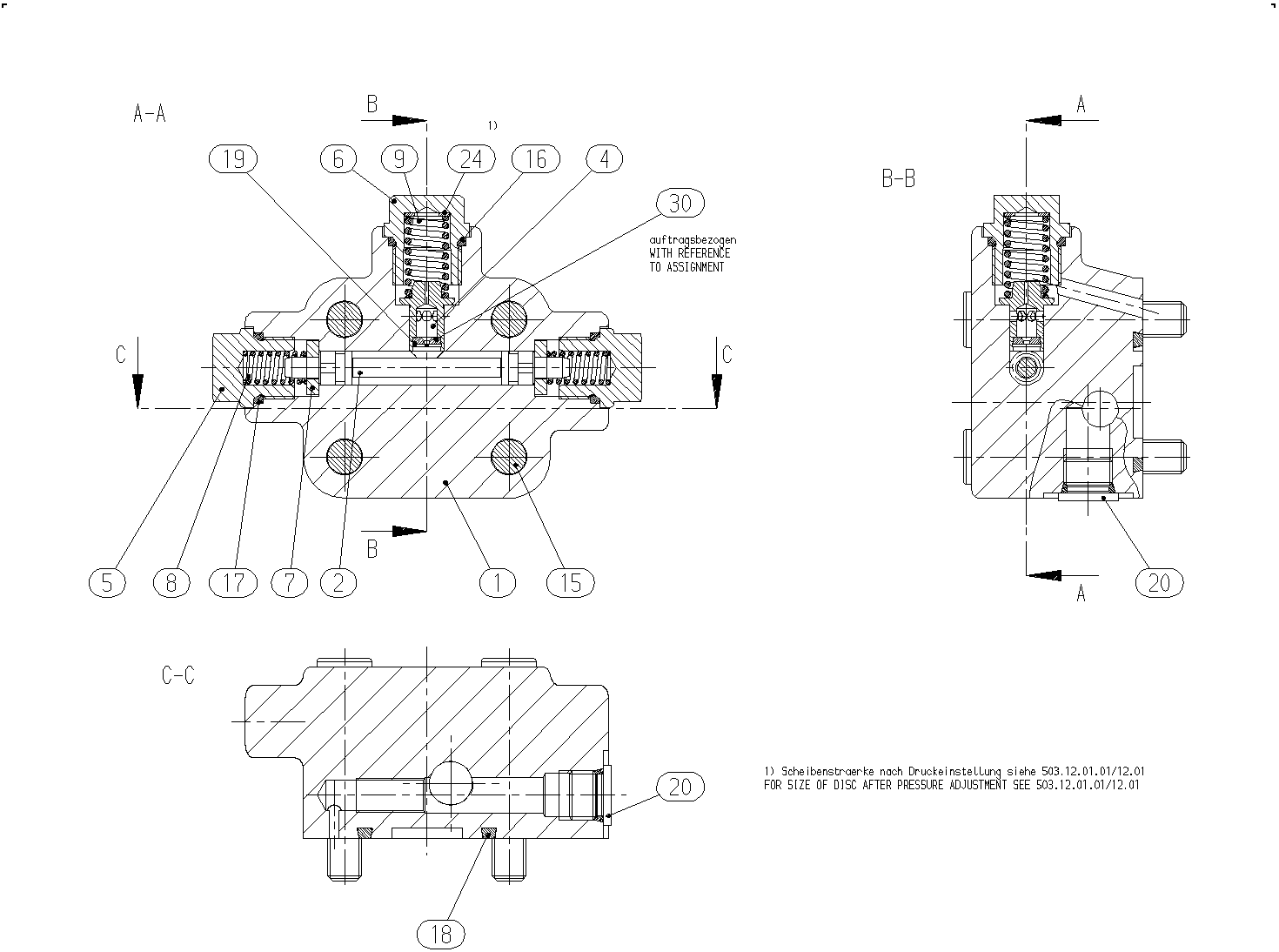

FLUSH/BOOST PRESSURE VALVER902107544
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902107545 | VALVE HOUSING | 1 | ||
| 2 | R902000156 | FLUSHING PISTON | 1 | |
| R909430234 | VALVE SPOOL | 1 | ||
| 5 | R909417111 | SCREW PLUG | 2 | |
| R909417846 | SCREW PLUG | 1 | ||
| 7 | R909417112 | WASHER | 2 | |
| R902011921 | COMPRESSION SPRING | 2 | ||
| 9 | R909417848 | COMPRESSION SPRING | 1 | |
| R909831470 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909087938 | O-RINGD | 1 | |
| 17 | R909087891 | O-RINGD | 2 | |
| 18 | R909085578 | O-RINGD | 1 | |
| 19 | R909153012 | RETAINING RING | 1 | |
| 20 | R913044793 | SCREW PLUGD | 2 | |
| 24 | R909157079 | SHIM RING | 1 | |
| 24 | R909157965 | SHIM RING | 1 | |
| 24 | R909157966 | SHIM RING | 1 | |
| R909419695 | ORIFICE | 1 |
