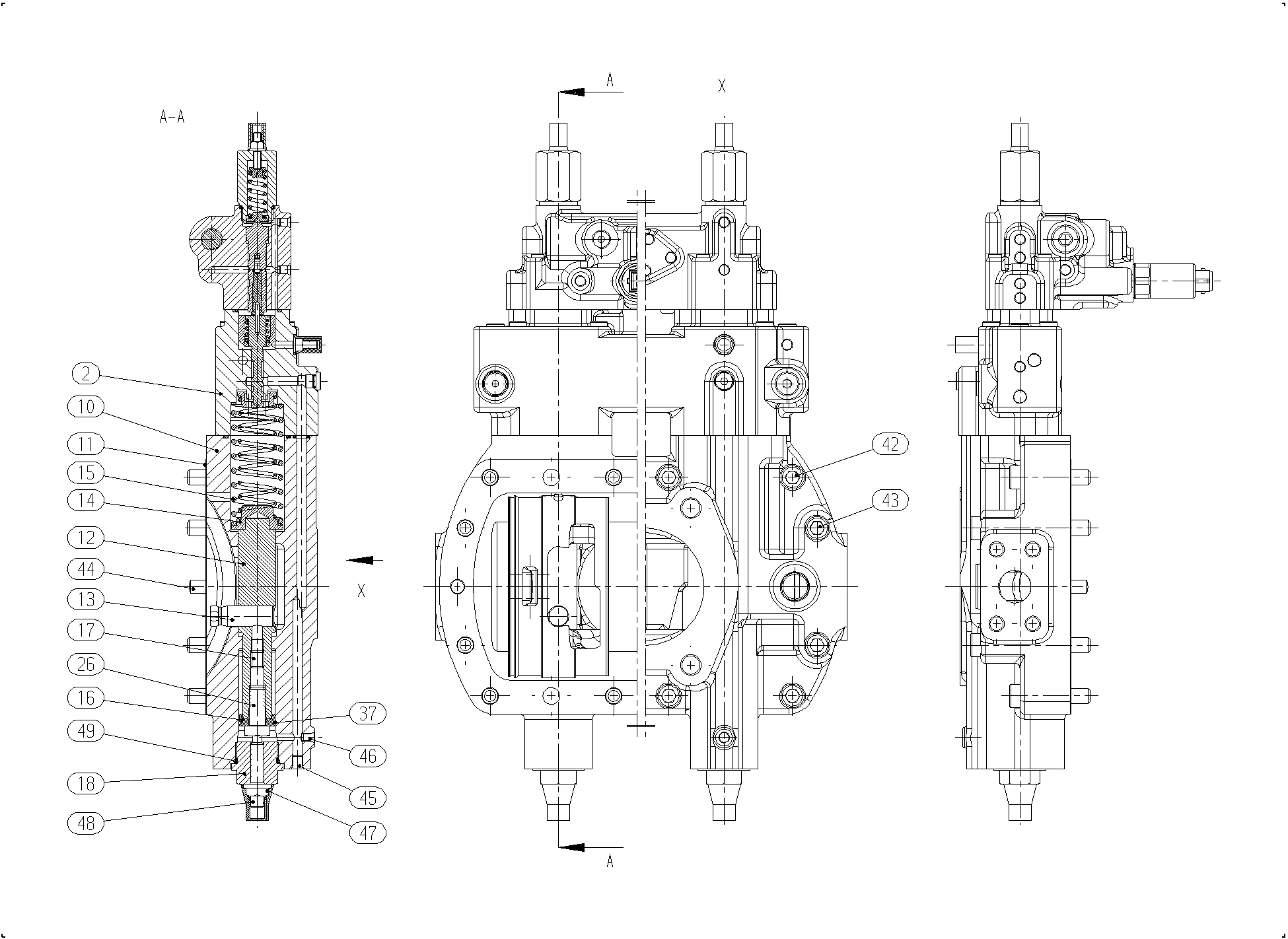

Assembly
CONTROLR902107587
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902107556 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902101309 | CONNECTION PLATE | 1 | ||
| 11 | R909650391 | SEALD | 1 | |
| R902090009 | POSITIONING PISTON | 2 | ||
| 13 | R902090010 | POSITIONING STUD | 2 | |
| 14 | R902107567 | SPRING DISK | 2 | |
| R902090016 | COMPRESSION SPRING | 2 | ||
| R902090012 | PISTON | 2 | ||
| R909444969 | SETSCREW | 2 | ||
| R902090013 | SCREW PLUG | 2 | ||
| R909083707 | HEXAGON SCREW | 2 | ||
| R902602840 | STEEL SEALING RINGD | 2 | ||
| R909083094 | SOCKET HEAD CAP SCREW | 8 | ||
| R909084754 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909152426 | SEALING NUT | 2 | ||
| 48 | R909153779 | SETSCREW | 2 | |
| R902600900 | O-RING | 2 | ||
| 50 | R909153371 | SCREW PLUG | 2 |
