Assembly

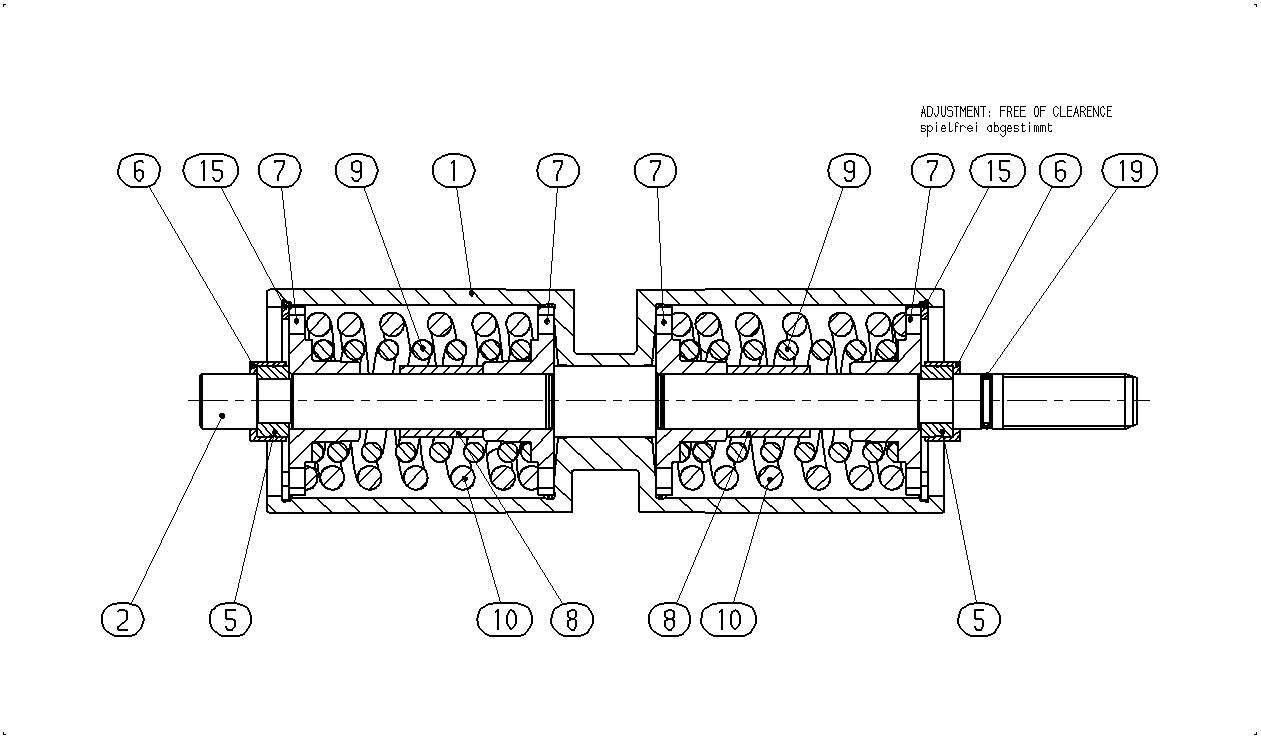

POSITIONING PISTONR902108715
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902252455 | POSITIONING PISTON | 1 | ||
| R902108662 | ROD | 1 | ||
| R902103197 | RING | 2 | ||
| R902103198 | RING | 2 | ||
| R902103199 | RING | 2 | ||
| R902103200 | RING | 2 | ||
| R902103201 | RING | 2 | ||
| R902103202 | RING | 2 | ||
| R902103203 | RING | 2 | ||
| R902103204 | RING | 2 | ||
| R902103205 | RING | 2 | ||
| R902603205 | LOCATING RING | 2 | ||
| R902121233 | SPRING DISK | 4 | ||
| R902114173 | SPACER BUSHING | 2 | ||
| R902114174 | SPACER BUSHING | 2 | ||
| R902114175 | SPACER BUSHING | 2 | ||
| R902114176 | SPACER BUSHING | 2 | ||
| R902130174 | SPACER BUSHING | 2 | ||
| R902130175 | SPACER BUSHING | 2 | ||
| R902130176 | SPACER BUSHING | 2 | ||
| R902130177 | SPACER BUSHING | 2 | ||
| R902114172 | SPACER BUSHING | 2 | ||
| R902108721 | COMPRESSION SPRING | 2 | ||
| R902130203 | COMPRESSION SPRING | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909086332 | O-RINGD | 1 |
