Assembly

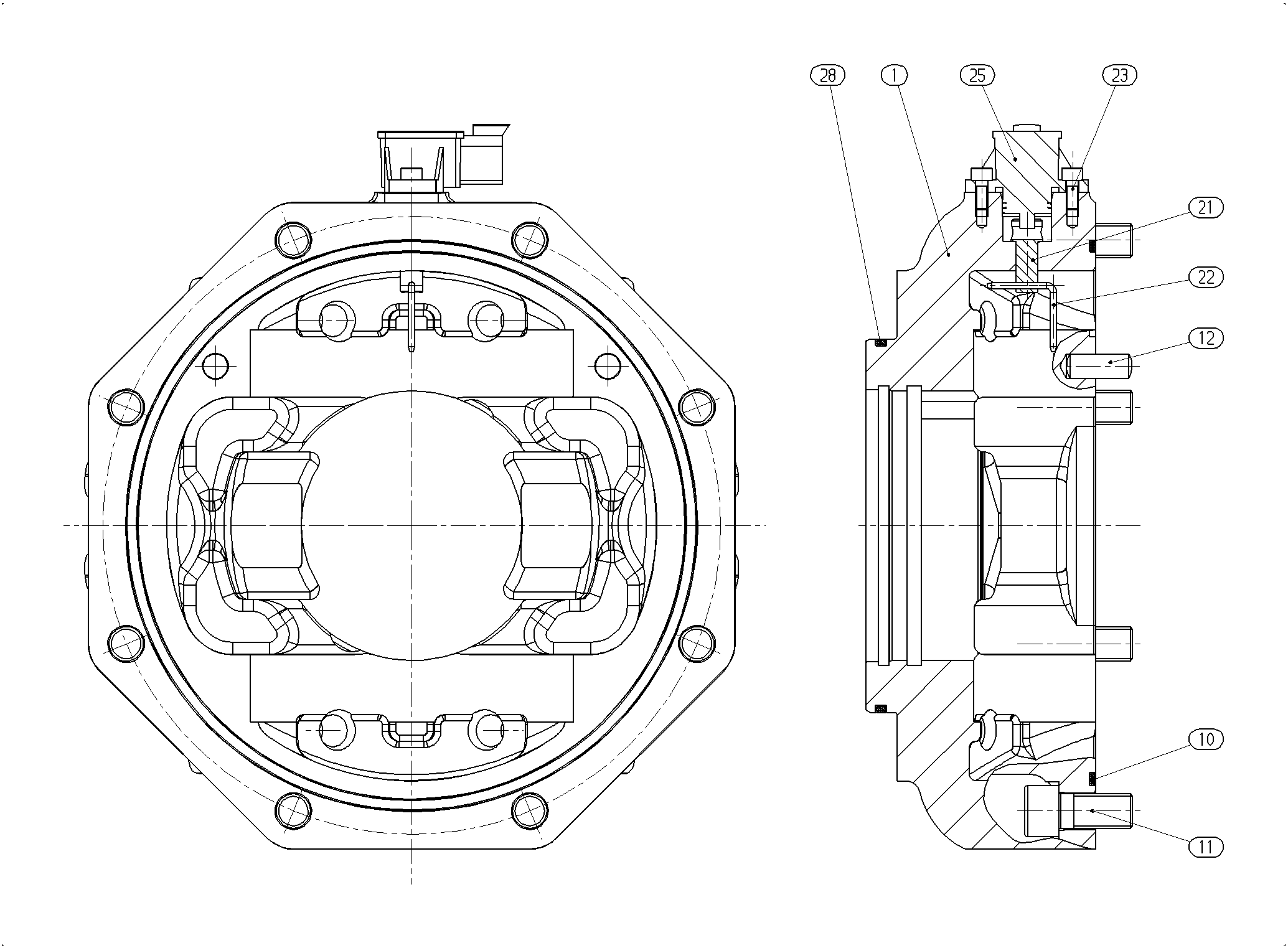

BEARING FLANGER902108805
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902121352 | BEARING FLANGE | 1 | ||
| R909157434 | O-RINGD | 1 | ||
| R902603583 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009672 | STRAIGHT PIN | 2 | ||
| R902105665 | SENSOR SHAFT | 1 | ||
| R902105664 | WIRE | 1 | ||
| R909083009 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603466 | ROT. ANGLE SENSOR | 1 | ||
| R909085929 | O-RING | 1 |
