Assembly

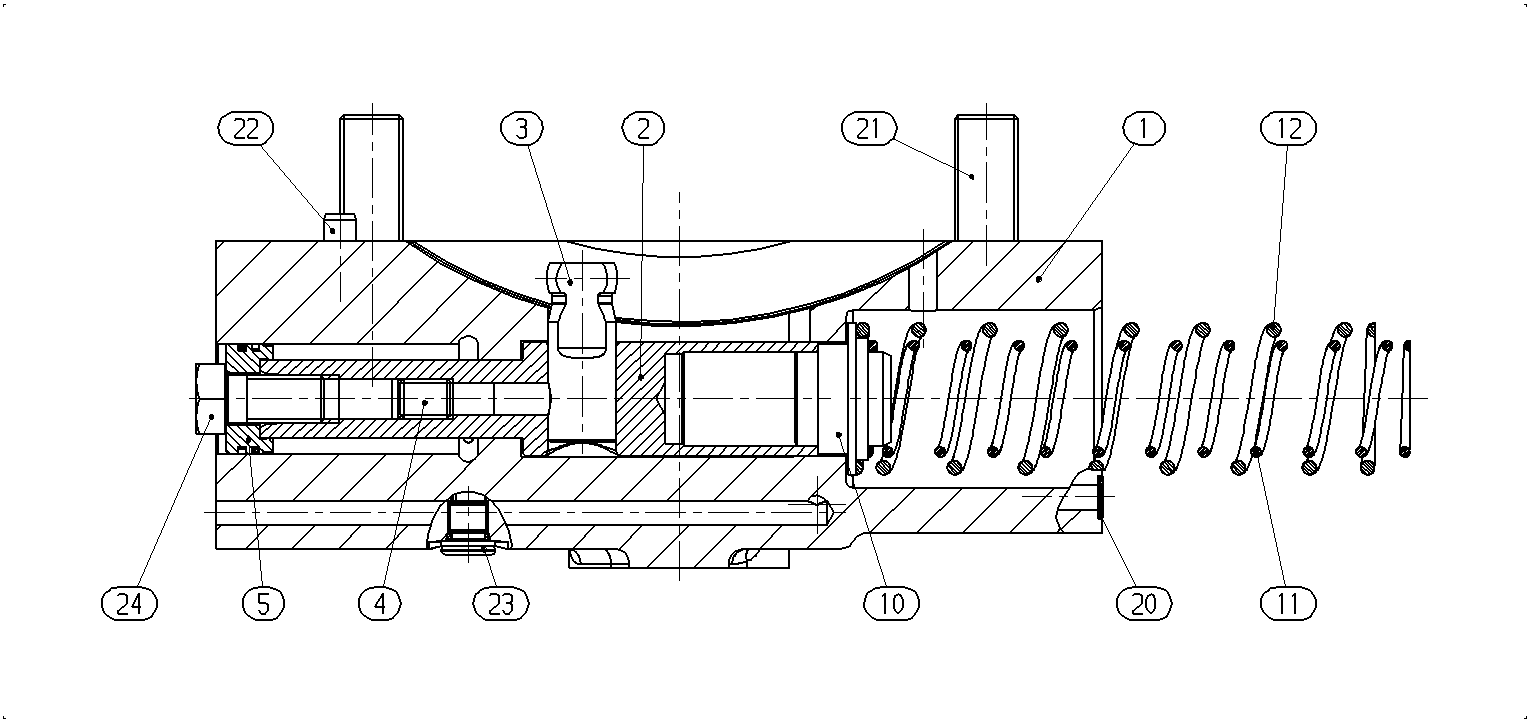

COVER PLATER902110261
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902115589 | COVER PLATE Assembly parts list →L | 1 | ||
| R902101487 | POSITIONING PISTON | 1 | ||
| R909422949 | POSITIONING STUD | 1 | ||
| R902101485 | SETSCREW | 1 | ||
| R902102901 | PISTON | 1 | ||
| R902016623 | SPRING DISK | 1 | ||
| R902016684 | COMPRESSION SPRING | 1 | ||
| R902016685 | COMPRESSION SPRING | 1 | ||
| R909085577 | O-RINGD | 2 | ||
| R909083134 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909083706 | HEXAGON SCREW | 1 |
