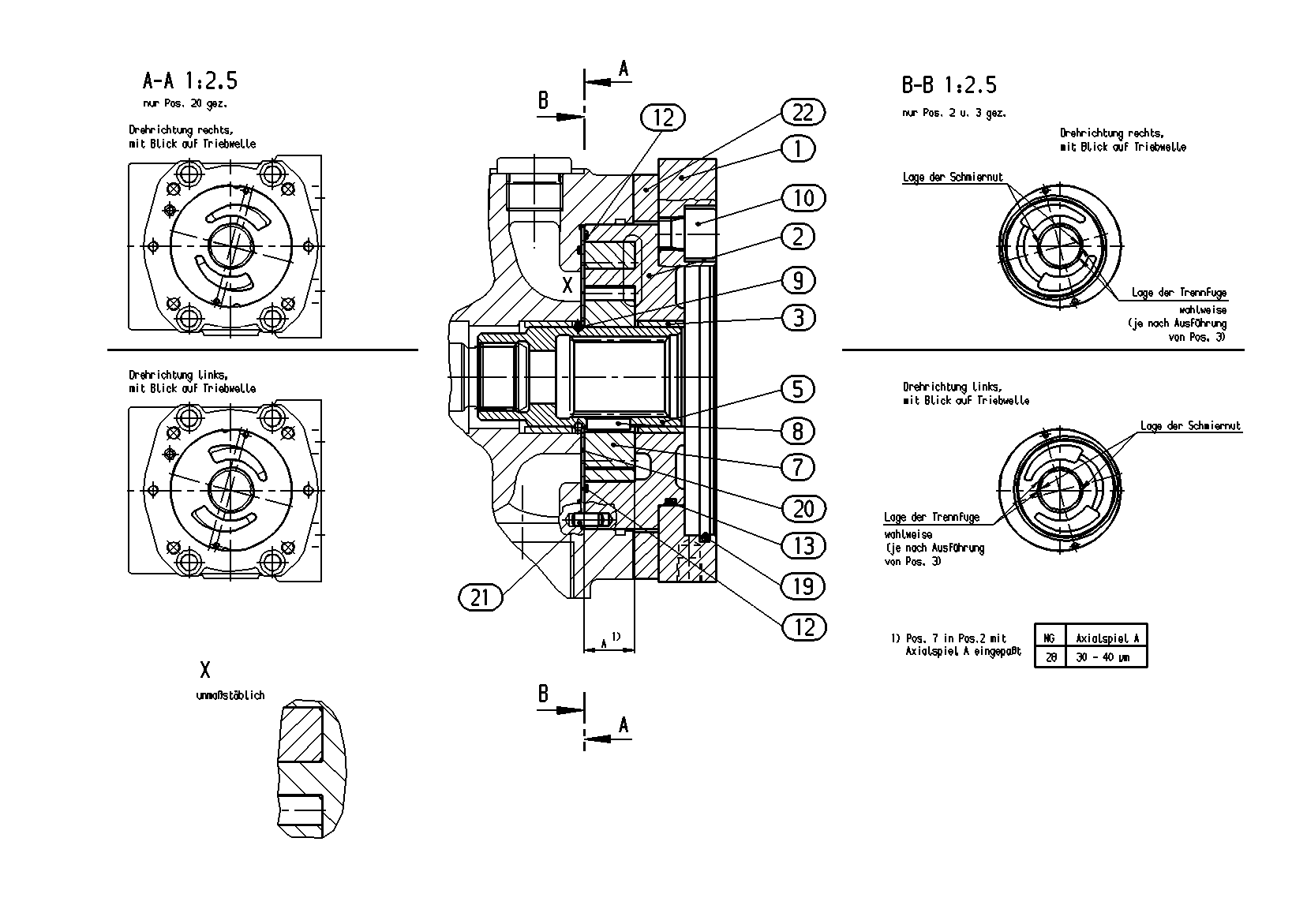

Assembly
INTERNAL GEAR PUMPR902110970
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902252430 | INTERMEDIATE FLANGE | 1 | ||
| R902095447 | HOUSING | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R902013438 | THROUGH DRIVE SHAFT | 1 | ||
| R902006255 | WHEEL SET | 1 | ||
| R902252407 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 2 | ||
| R909084504 | O-RINGD | 1 | ||
| R913044774 | O-RINGD | 1 | ||
| R909650740 | WEAR PLATE | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902035541 | SHIM RING | 1 | ||
| 98 | R902002448 | SEAL KIT | 1 |
