Assembly

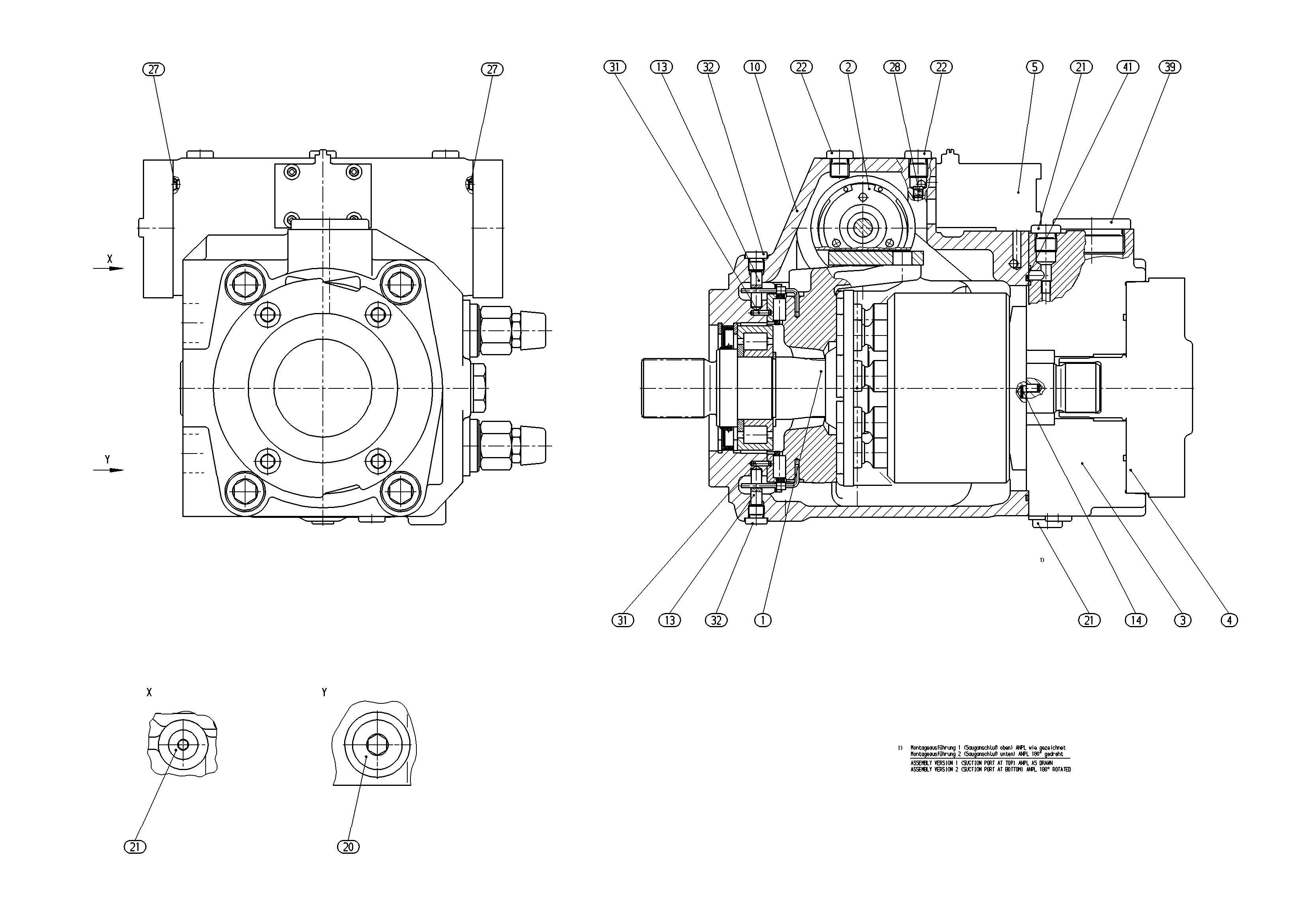

AXIAL-PISTON PUMPR902113484
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902106009 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902019518 | CONTROL Assembly parts list →L | 1 | ||
| R902069076 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902036109 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902106613 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902020375 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153330 | O-RINGD | 1 |
