Assembly

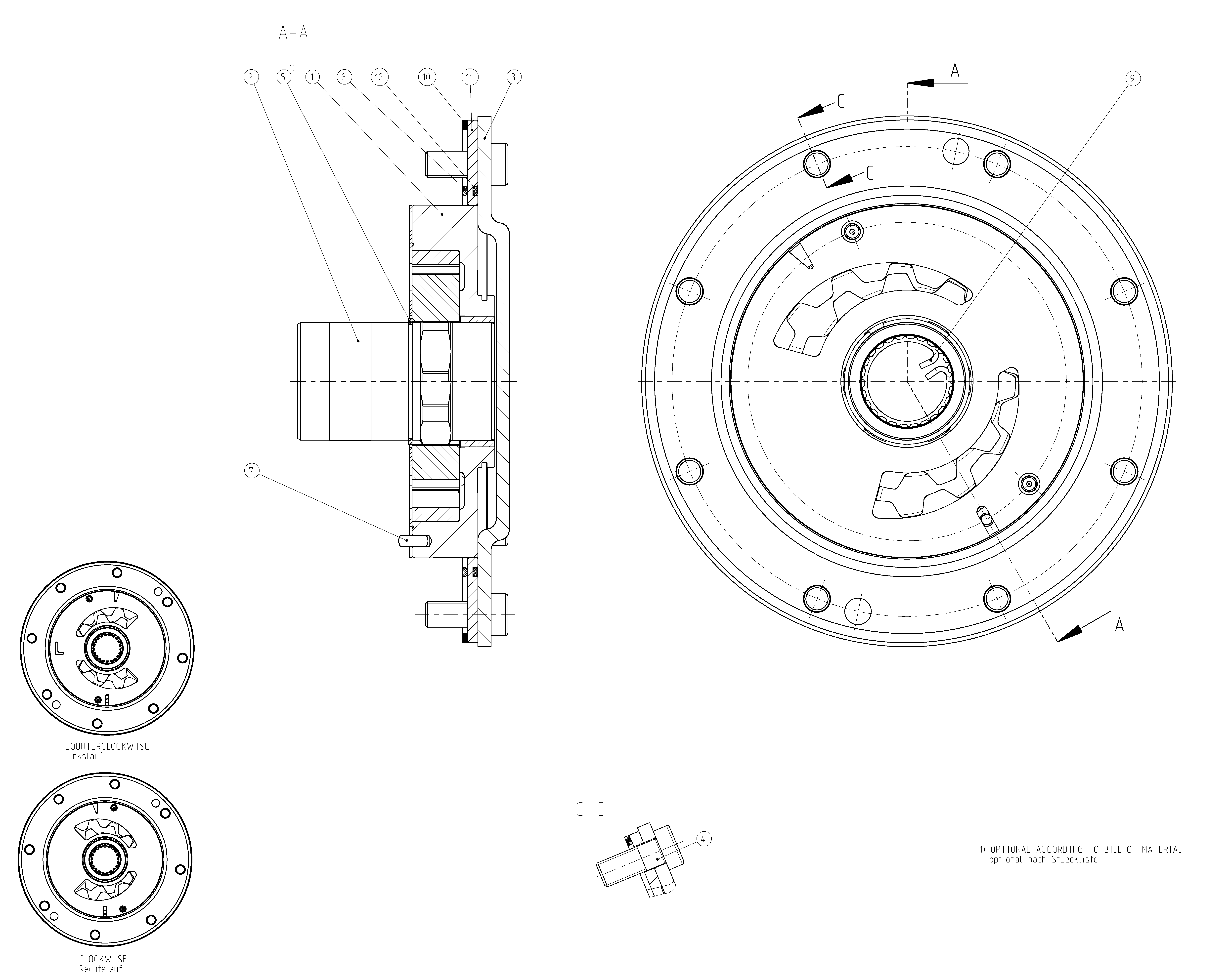

INTERNAL GEAR PUMPR902114421
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902226533 | HOUSING Assembly parts list →L | 1 | ||
| R902114426 | PLUG-IN SHAFT | 1 | ||
| R902226565 | COVER | 1 | ||
| R902603513 | SOCKET HEAD CAP SCREW | 8 | ||
| R902603540 | SNAP RING | 1 | ||
| R909084143 | STRAIGHT PIN | 1 | ||
| R910112186 | O-RINGD | 1 | ||
| R902601474 | SNAP RING | 1 | ||
| R902603541 | KANTSEALD | 1 | ||
| R902136795 | INTERMEDIATE PLATE | 1 | ||
| R909830207 | O-RINGD | 1 |
