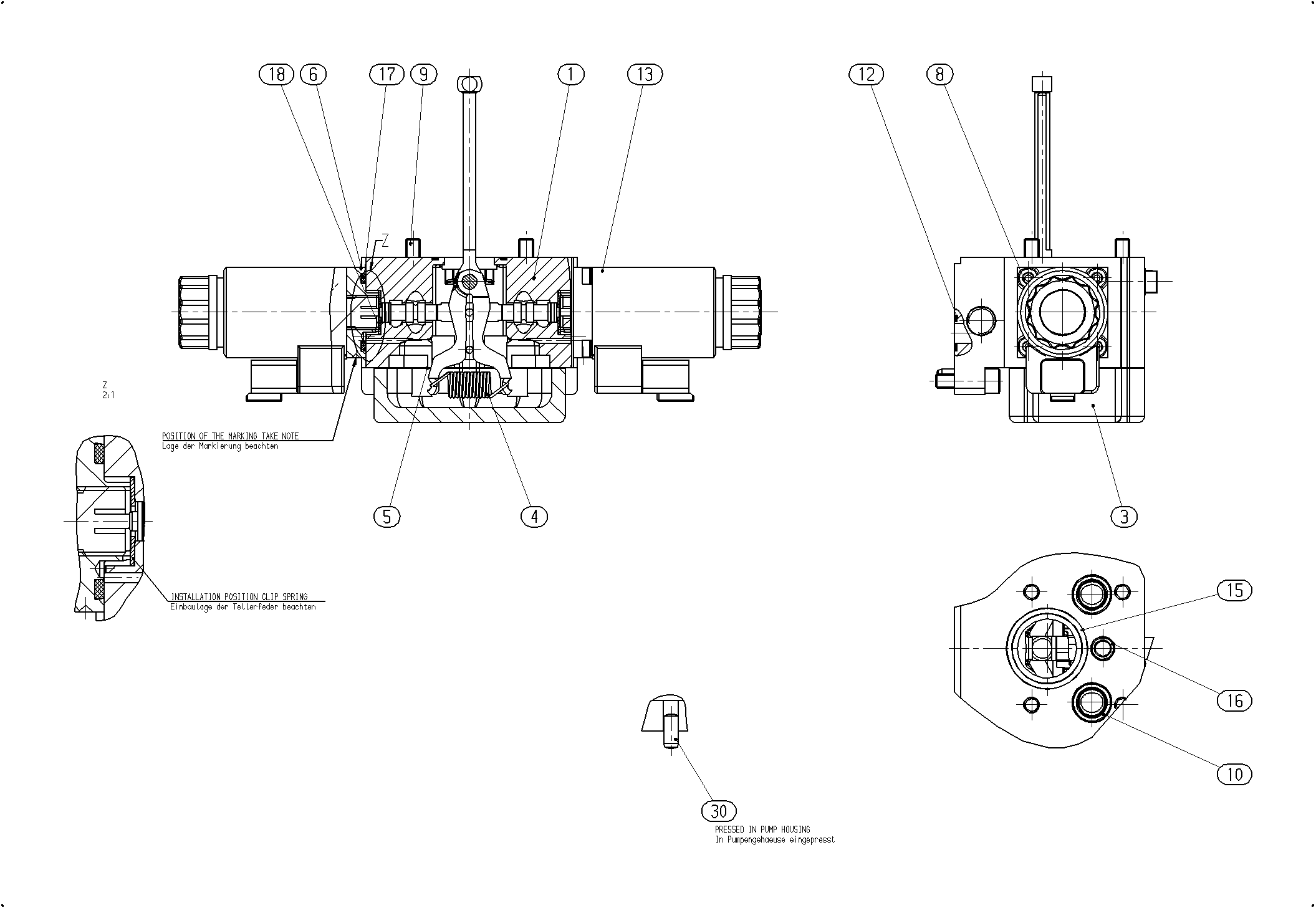

Assembly
CONTROL MODULER902115370
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902058796 | BASIC UNIT Assembly parts list →L | 1 | ||
| R909443201 | COVERD | 1 | ||
| R902063327 | EXTENSION SPRING | 1 | ||
| R909651478 | SEAL | 1 | ||
| R902046037 | LOCATION PIECED | 2 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085831 | SOCKET HEAD CAP SCREWD | 4 | ||
| R902600641 | O-RING | 1 | ||
| R909086178 | O-RING | 3 | ||
| R902602656 | PROPORTIONAL SOLENOID | 2 | ||
| R909086333 | O-RING | 2 | ||
| R909086380 | O-RING | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902601640 | DISC SPRING | 2 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
