Assembly

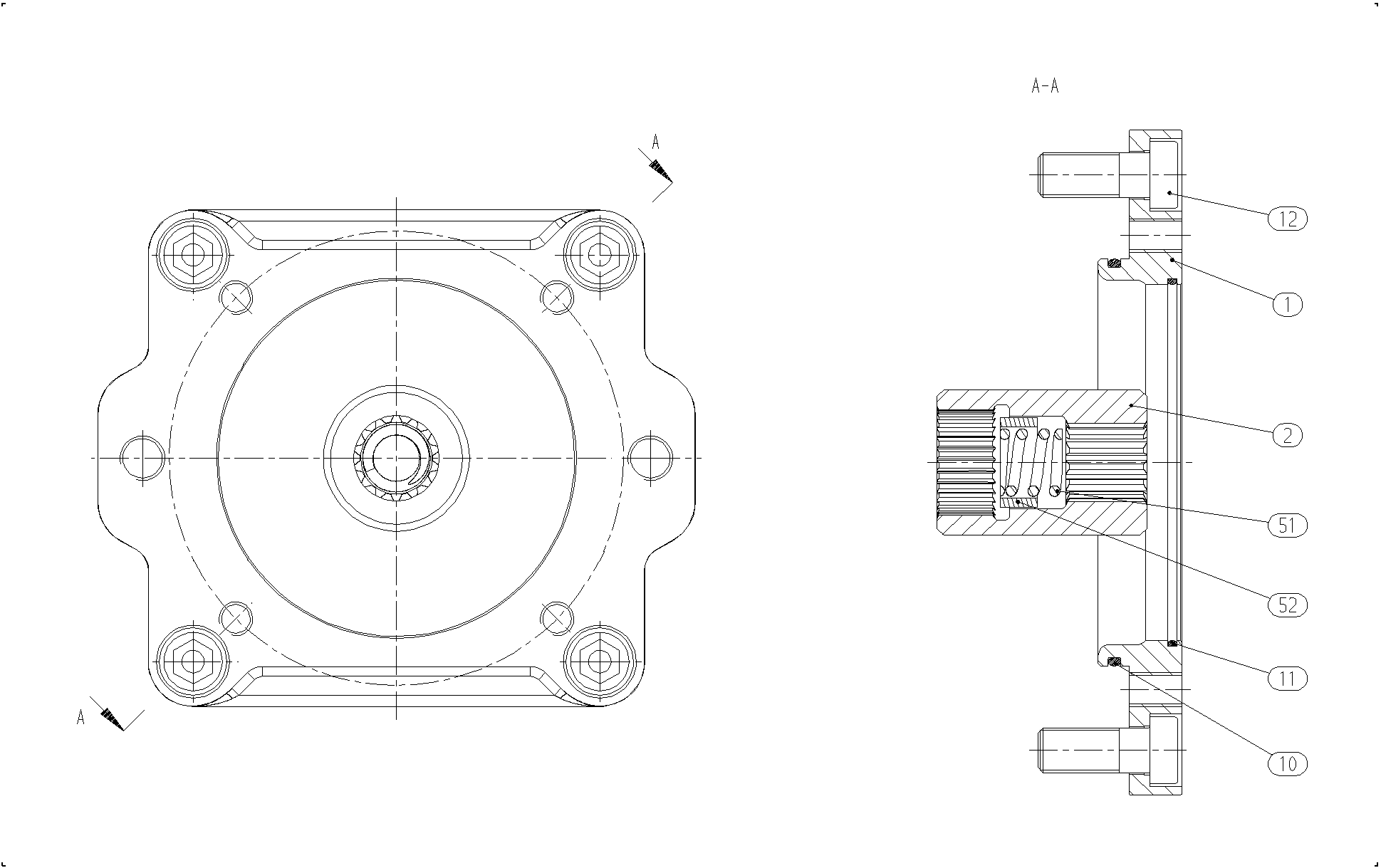

BELL HOUSINGR902120050
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902014641 | FLANGE | 1 | ||
| R902007463 | COUPLING HUB | 1 | ||
| R909157351 | O-RINGD | 1 | ||
| R913002054 | O-RINGD | 1 | ||
| R909083211 | SOCKET HEAD CAP SCREW | 4 | ||
| R902069344 | COMPRESSION SPRING | 1 | ||
| R902070241 | GUIDE BUSHING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902014641 | FLANGE | 1 | ||
| R902007463 | COUPLING HUB | 1 | ||
| R909157351 | O-RINGD | 1 | ||
| R913002054 | O-RINGD | 1 | ||
| R909083211 | SOCKET HEAD CAP SCREW | 4 | ||
| R902069344 | COMPRESSION SPRING | 1 | ||
| R902070241 | GUIDE BUSHING | 1 |
