Assembly

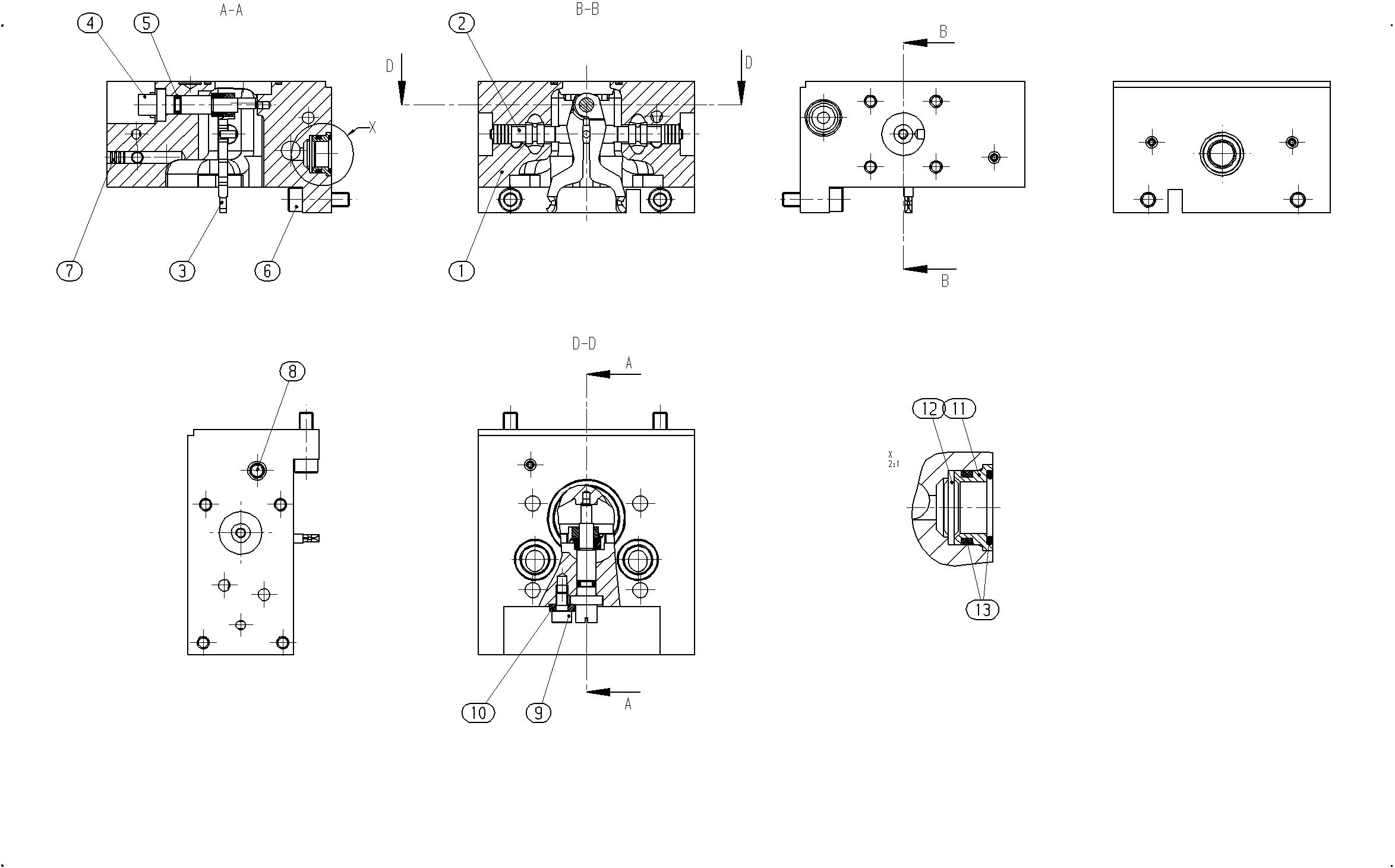

CONTROL HOUSINGR902120695
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902113719 | HOUSING | 1 | ||
| R902089533 | CONTROL PISTON | 1 | ||
| R902206238 | LEVER PAIR | 1 | ||
| R902067212 | ECCENTRIC PIN | 1 | ||
| 5 | R909153668 | O-RINGD | 1 | |
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603684 | SEALING PLUG | 8 | ||
| R902603687 | SEALING PLUG | 1 | ||
| 9 | R902601243 | SOCKET HEAD CAP SCREW | 1 | |
| R902044854 | WASHER | 1 | ||
| 11 | R902107488 | RING | 1 | |
| R902603311 | FILTER DISC | 1 | ||
| 13 | R909086333 | O-RING | 2 |
