Assembly

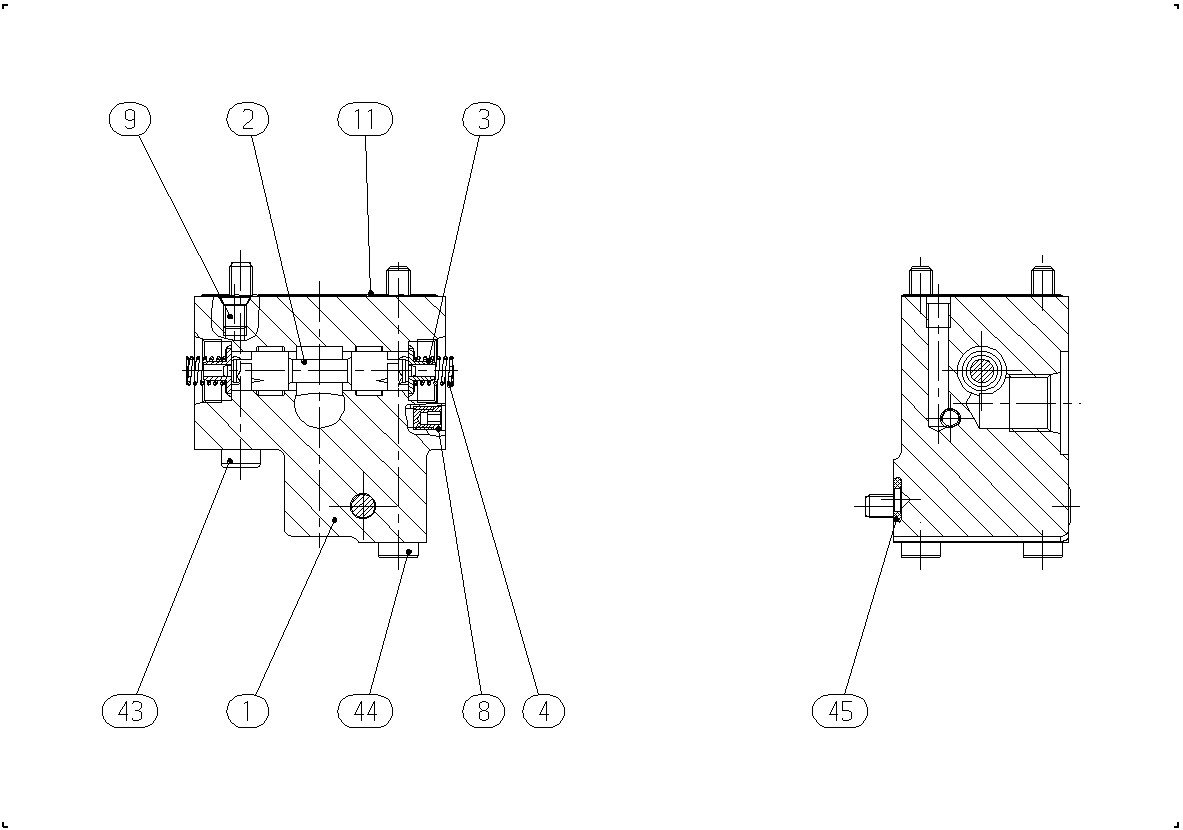

VALVE HOUSINGR902120764
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902120766 | VALVE HOUSING | 1 | ||
| R902044859 | CONTROL PISTON | 1 | ||
| R902040694 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R902600705 | PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902603829 | SEALD | 1 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 3 | ||
| R909830040 | SOCKET HEAD CAP SCREW | 2 | ||
| R909157512 | O-RING | 1 |
