Assembly

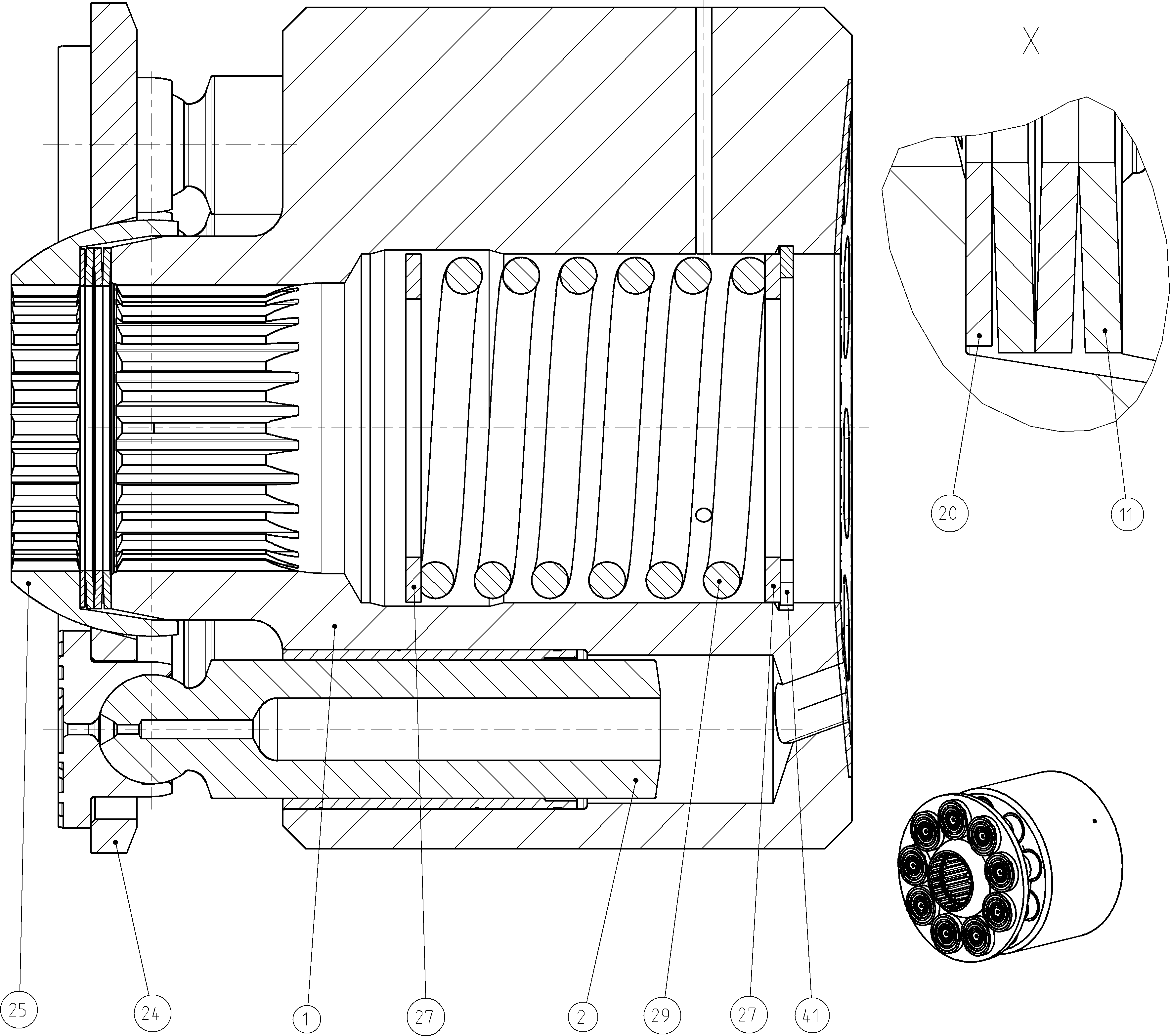

ROTARY GROUPR902121458
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902121403 | CYLINDER | 1 | ||
| R902136608 | PISTON PAD | 9 | ||
| R902103658 | CUP-SPRING STACK | 1 | ||
| R902094471 | SHIM RING | 1 | ||
| R902094472 | SHIM RING | 1 | ||
| R902094473 | SHIM RING | 1 | ||
| R902094474 | SHIM RING | 1 | ||
| R902213298 | RETAINING PLATE | 1 | ||
| R902094468 | RETAINING BALL | 1 | ||
| R902124625 | WASHER | 2 | ||
| R902124624 | COMPRESSION SPRING | 1 | ||
| R909831280 | RETAINING RING | 1 |
