Assembly

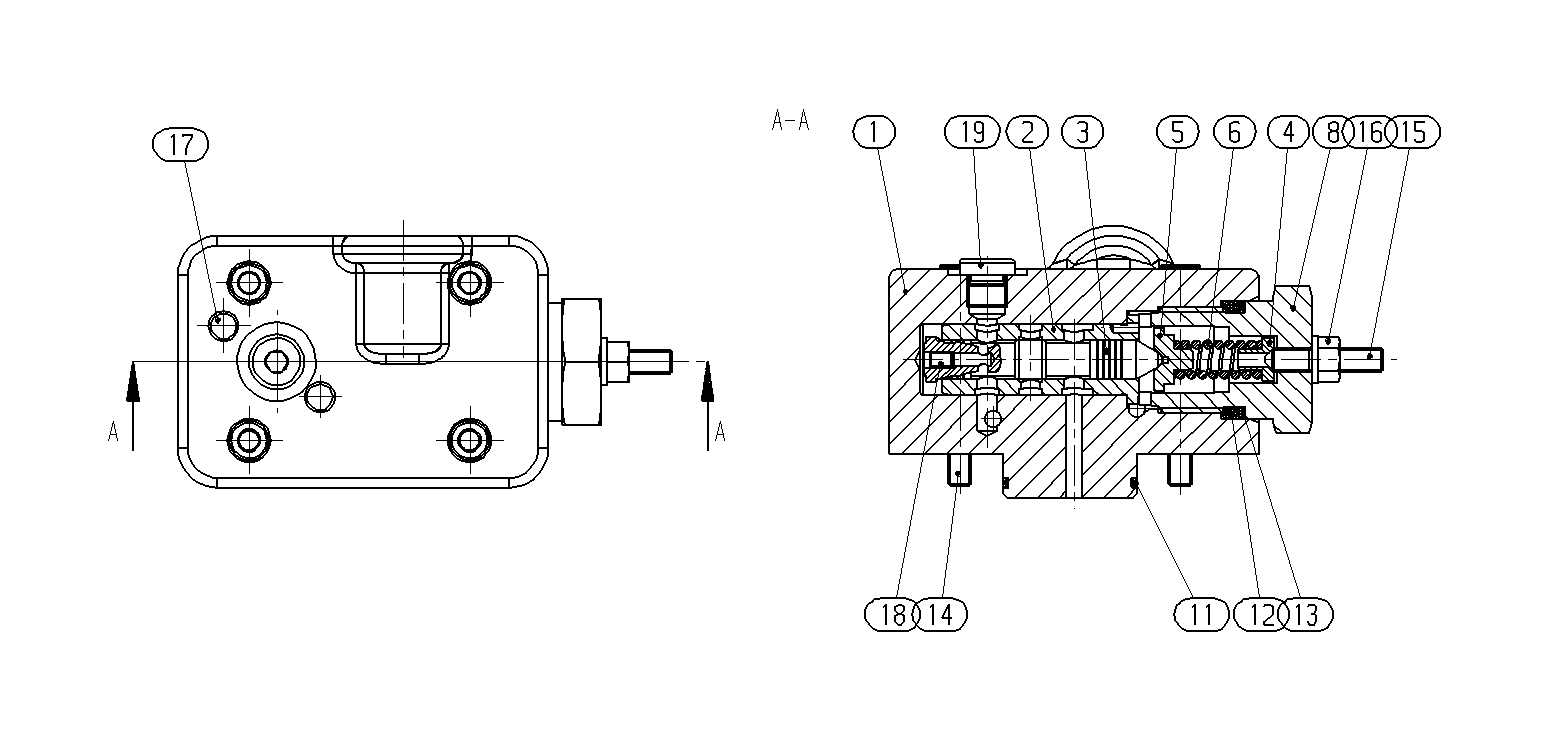

CONTROL PARTR902121860
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902134624 | CONTROL HOUSING | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| R909422325 | SPRING DISK | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909432852 | SCREW PLUG | 1 | ||
| R909157562 | O-RINGD | 1 | ||
| R909083797 | O-RINGD | 1 | ||
| R909087626 | BACKUP RING | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154140 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909083488 | SETSCREW | 1 | ||
| R909156649 | SCREW PLUGD | 1 |
