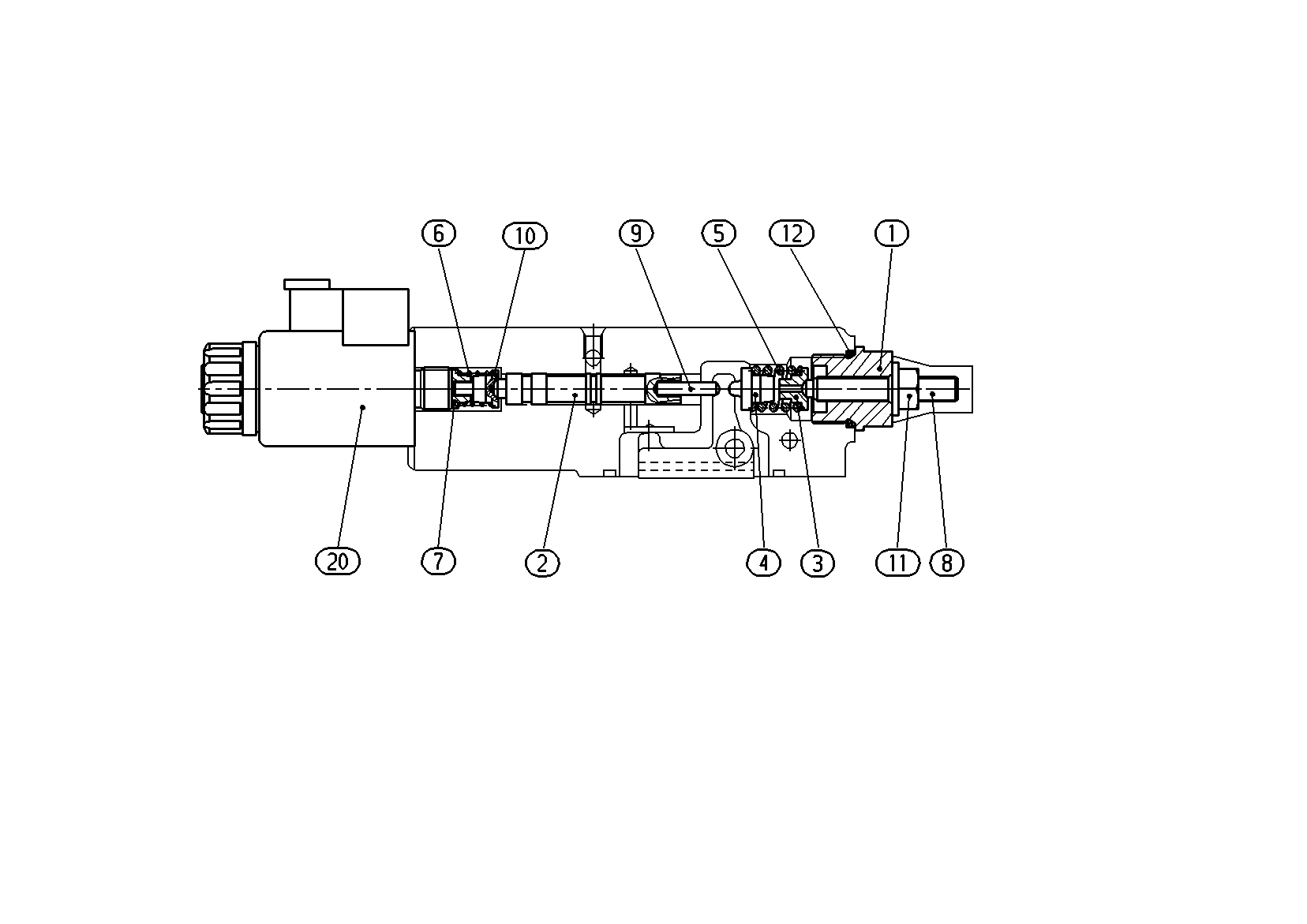

Assembly
CONTROL ELEMENTR902122020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902039415 | SCREW PLUG | 1 | |
| R902120499 | CONTROL PISTON | 1 | ||
| R909436991 | SPRING BOLT | 1 | ||
| 4 | R909440787 | SPRING BOLT | 1 | |
| R909443278 | COMPRESSION SPRING | 1 | ||
| R909436459 | COMPRESSION SPRING | 1 | ||
| 7 | R902213895 | SPRING DISK | 1 | |
| R902039383 | SETSCREW | 1 | ||
| R902237859 | BOLT | 1 | ||
| R902213896 | SPRING BOLT | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| R909083758 | O-RINGD | 2 | ||
| R902603443 | PROPORTIONAL SOLENOID | 1 |
