Assembly

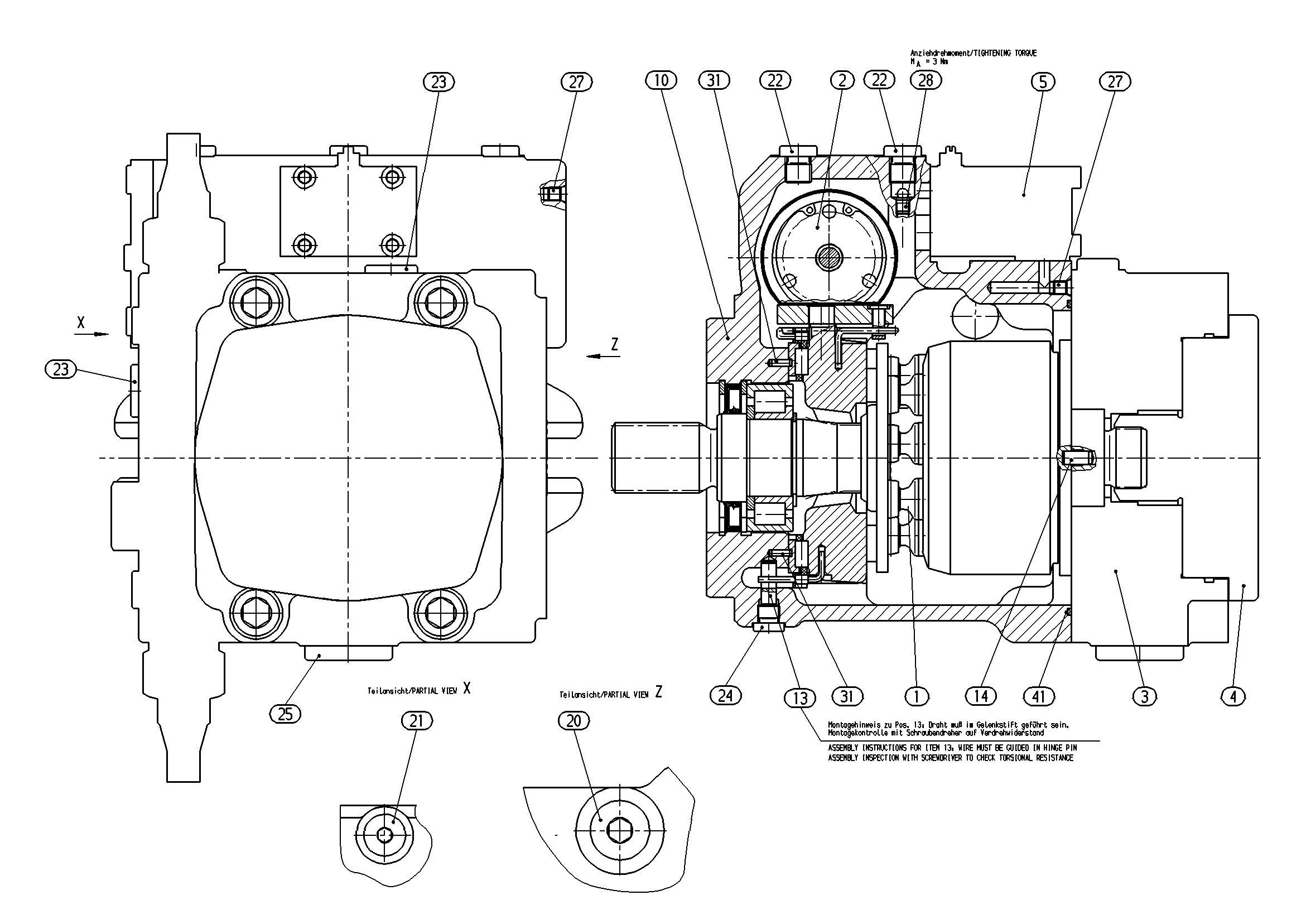

AXIAL-PISTON PUMPR902123800
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902036084 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902017540 | CONTROL Assembly parts list →L | 1 | ||
| R902120346 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902240508 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902107057 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902029664 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153378 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156491 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| 98 | R902095620 | SEAL KIT | 1 |
