Assembly

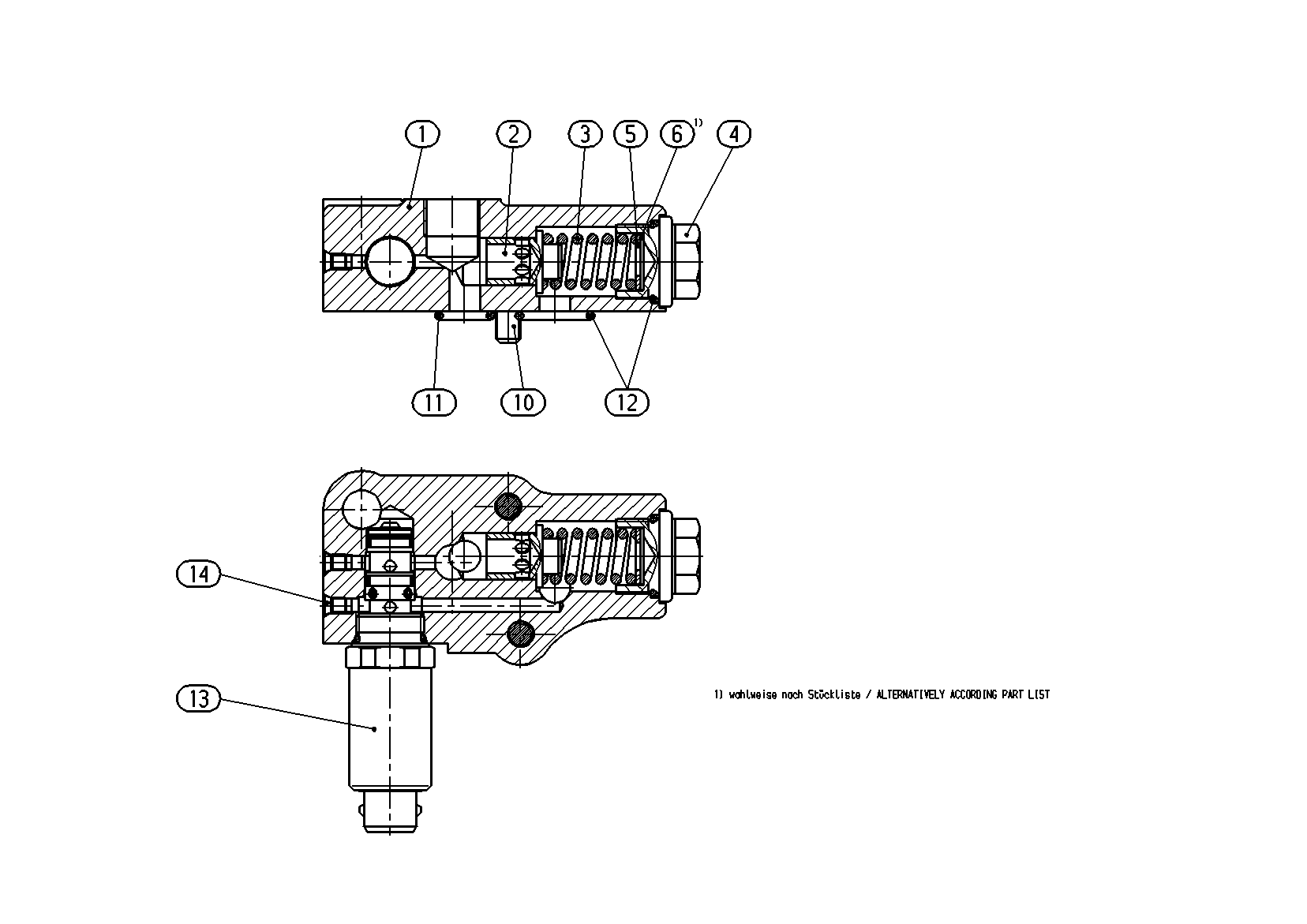

CONNECTION PLATER902124161
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902054820 | CONNECTION PLATE | 1 | ||
| R909426804 | VALVE SPOOL | 1 | ||
| R902030583 | COMPRESSION SPRING | 1 | ||
| R909409509 | SCREW PLUG | 1 | ||
| R909080511 | WASHER | 1 | ||
| R909083043 | SOCKET HEAD CAP SCREW | 2 | ||
| 11 | R909083753 | O-RING | 1 | |
| R909083760 | O-RING | 2 | ||
| 13 | R901297359 | PRESSURE REDUCING VALVE | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
