Assembly

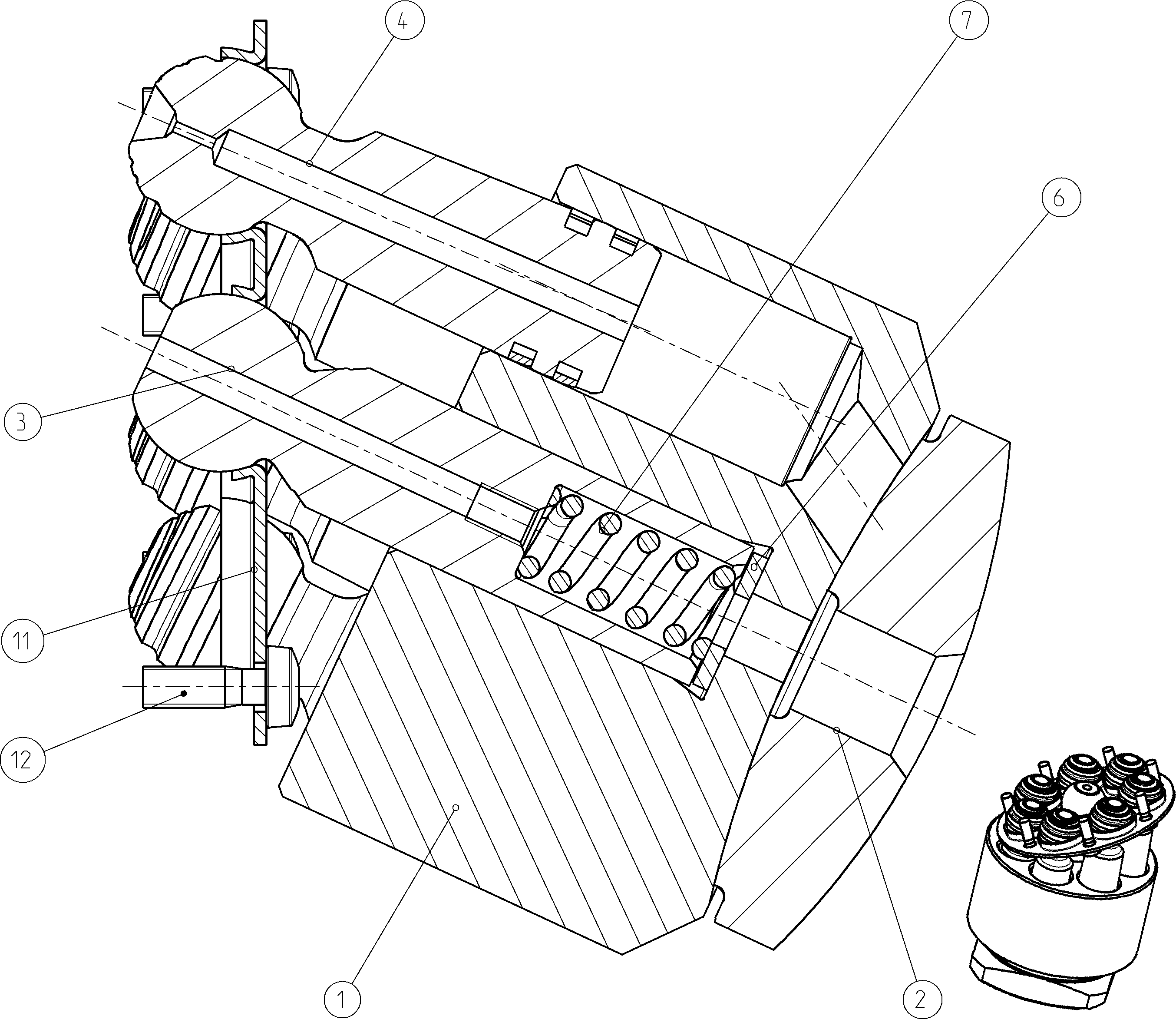

ROTARY GROUPR902124328
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124325 | CYLINDER | 1 | ||
| R902138385 | CONTROL LENS | 1 | ||
| R902124326 | CENTER PIN | 1 | ||
| R902124323 | PISTON | 7 | ||
| R902096612 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902027213 | COMPRESSION SPRING | 1 | ||
| R902072549 | RETAINING PLATE | 1 | ||
| R902603052 | PAN-HEAD SCREW | 7 |
