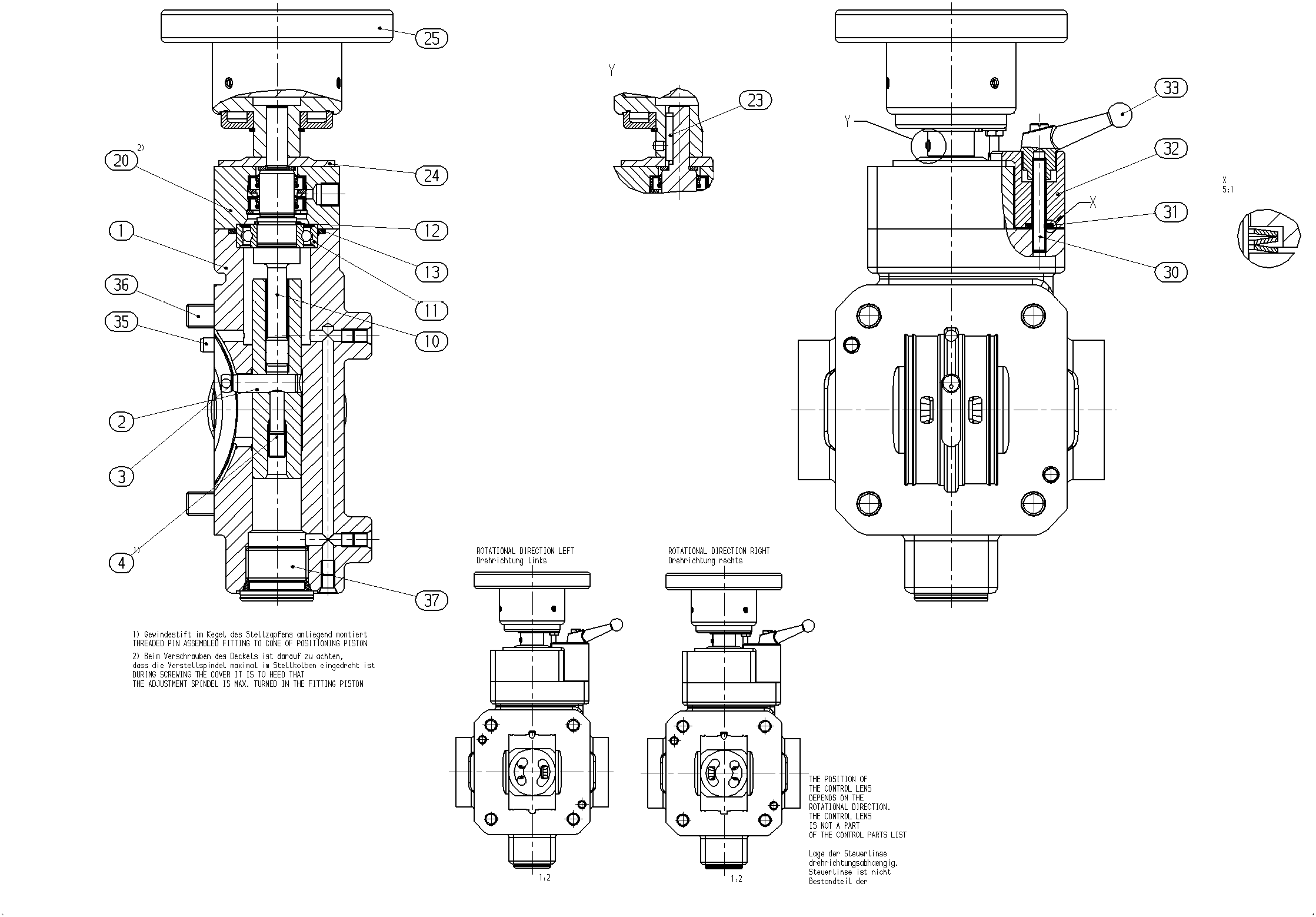

Assembly
CONTROLR902124337
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902130628 | COVER PLATE Assembly parts list →L | 1 | ||
| R902124341 | POSITIONING PISTON | 1 | ||
| R902124342 | POSITIONING STUD | 1 | ||
| R902063825 | SETSCREW | 1 | ||
| R902063820 | ADJUSTMENT SPINDLE | 1 | ||
| R902602036 | DEEP-GROOVE BALL BEARING | 1 | ||
| R913004029 | RETAINING RING | 1 | ||
| R902600667 | O-RINGD | 1 | ||
| R902231930 | COVER Assembly parts list →L | 1 | ||
| R909430627 | PARALLEL KEY | 1 | ||
| R909430630 | CLAMPING DISC | 1 | ||
| R902138392 | HANDWHEEL Assembly parts list →L | 1 | ||
| R902149487 | SETSCREW | 1 | ||
| R909411160 | DISC SPRING | 4 | ||
| R902138314 | EXPANSION PIECE | 1 | ||
| R909830246 | CLAMPING LEVER | 1 | ||
| R913003949 | STRAIGHT PIN | 2 | ||
| R909085704 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601712 | SCREW PLUG | 1 |
