Assembly

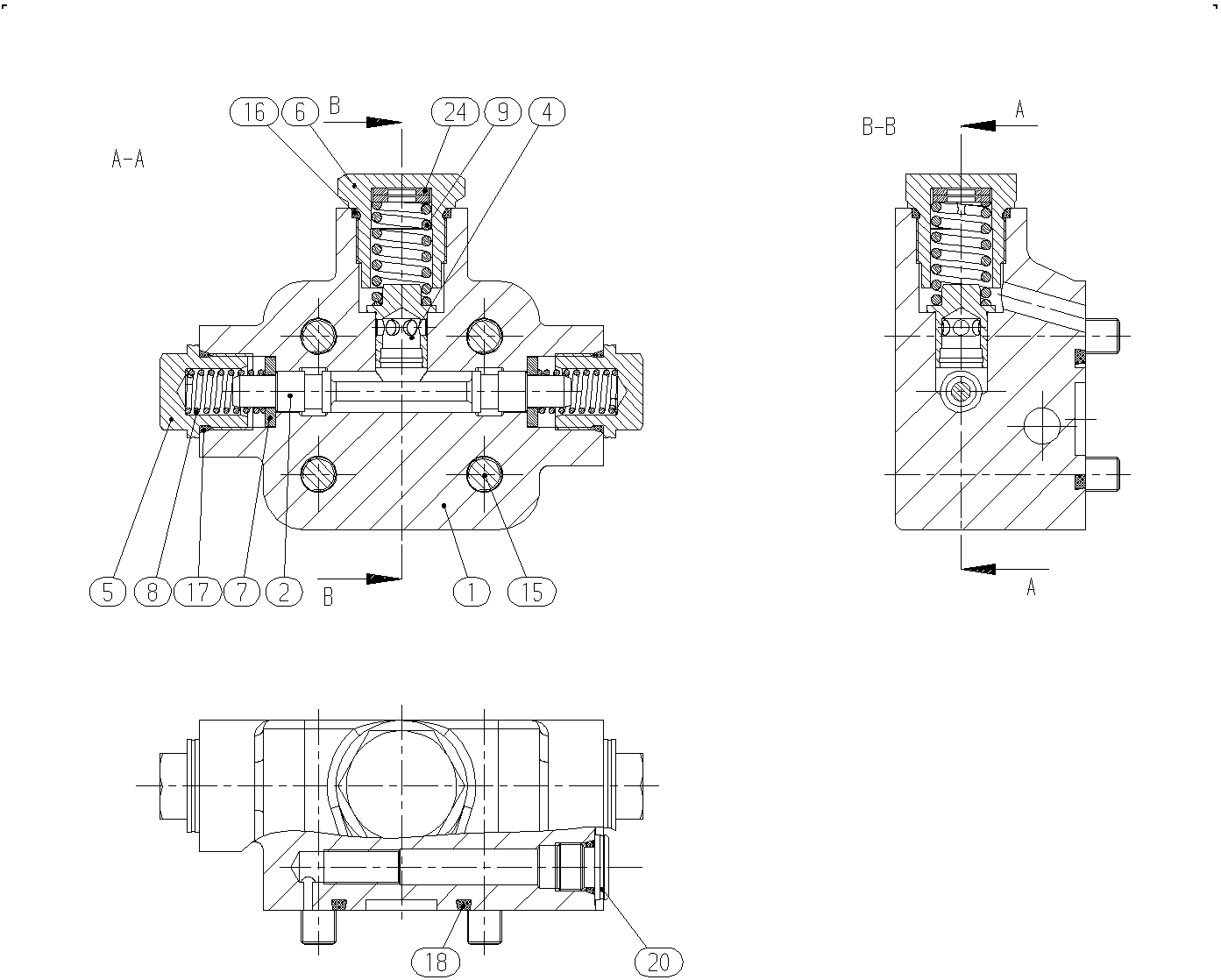

FLUSH/BOOST PRESSURE VALVER902126725
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902126567 | VALVE HOUSING | 1 | |
| R902119991 | FLUSHING PISTON | 1 | ||
| R902134982 | VALVE SPOOL | 1 | ||
| 5 | R902124381 | SCREW PLUG | 2 | |
| R909435052 | SCREW PLUG | 1 | ||
| R909431642 | WASHER | 2 | ||
| R909402696 | COMPRESSION SPRING | 2 | ||
| R909078142 | COMPRESSION SPRING | 1 | ||
| 15 | R909831470 | SOCKET HEAD CAP SCREW | 4 | |
| R909152694 | O-RING | 1 | ||
| 17 | R902600738 | O-RING | 2 | |
| R909085578 | O-RING | 1 | ||
| 20 | R909831482 | SCREW PLUG | 1 | |
| 24 | R909445735 | WASHER | 2 |
