Assembly

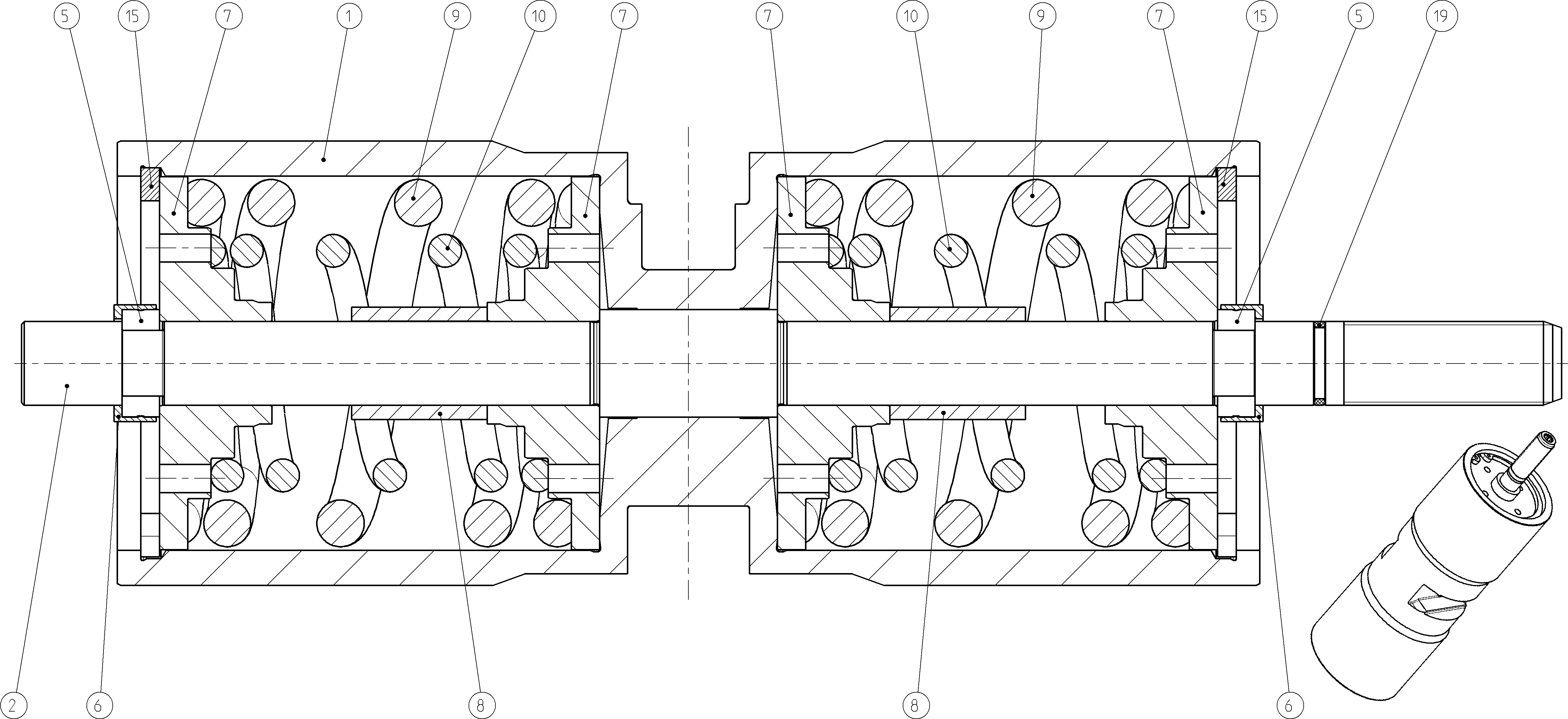

POSITIONING PISTONR902130021
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124785 | POSITIONING PISTON | 1 | ||
| R902124911 | ROD | 1 | ||
| R902025847 | RING | 2 | ||
| R902039649 | RING | 2 | ||
| R902025577 | RING | 2 | ||
| R902025578 | RING | 2 | ||
| R902025579 | RING | 2 | ||
| R902025576 | RING | 2 | ||
| R902025580 | RING | 2 | ||
| R902025581 | RING | 2 | ||
| R902600772 | LOCATING RING | 2 | ||
| R902124828 | SPRING DISK | 4 | ||
| R902124983 | SPACER BUSHING | 2 | ||
| R902124984 | SPACER BUSHING | 2 | ||
| R902124985 | SPACER BUSHING | 2 | ||
| R902124986 | SPACER BUSHING | 2 | ||
| R902124987 | SPACER BUSHING | 2 | ||
| R902124988 | SPACER BUSHING | 2 | ||
| R902124989 | SPACER BUSHING | 2 | ||
| R902124874 | COMPRESSION SPRING | 2 | ||
| R902124877 | COMPRESSION SPRING | 2 | ||
| R913000828 | RETAINING RING | 2 | ||
| R909086523 | O-RINGD | 1 |
