Assembly

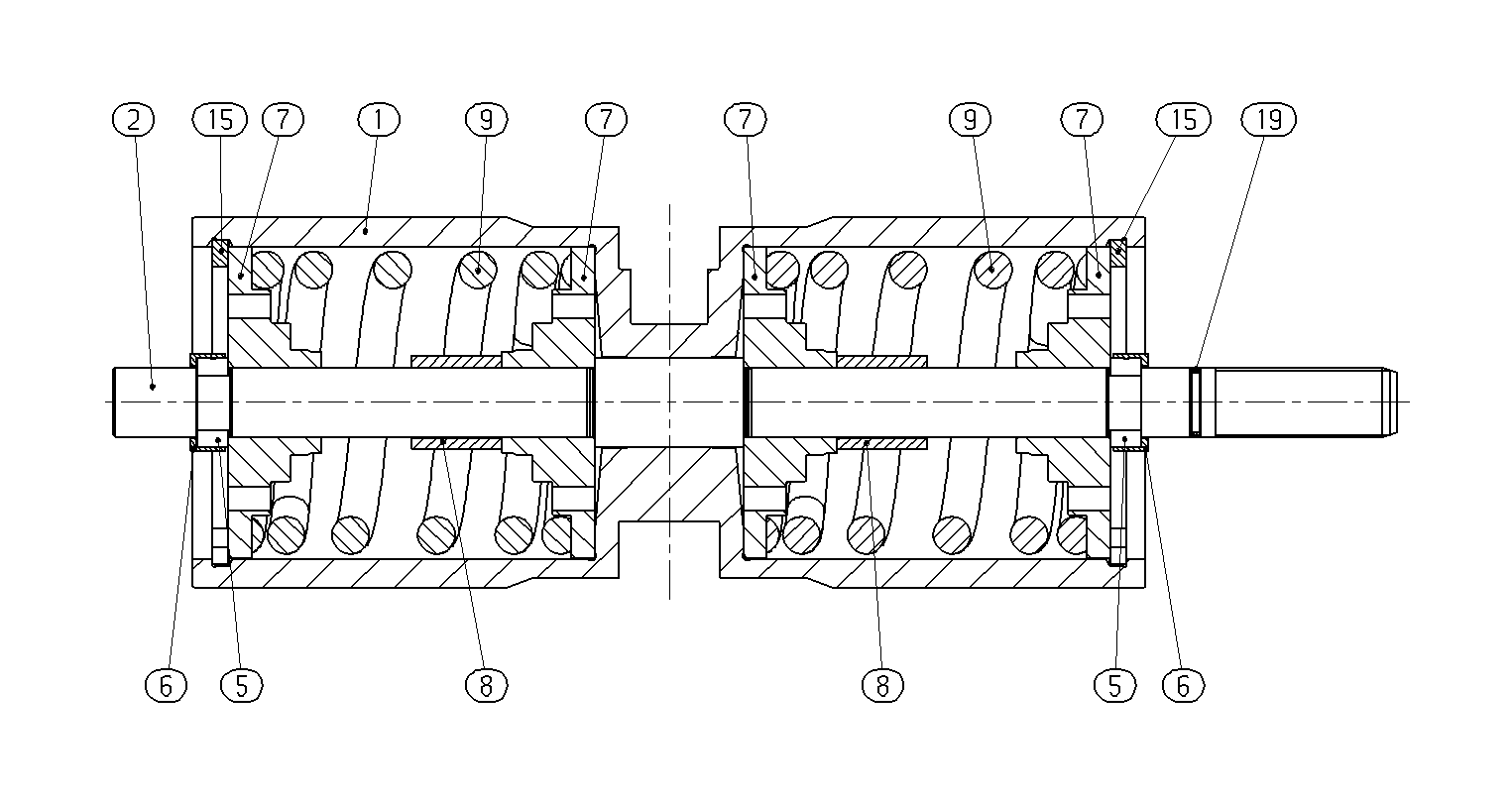

POSITIONING PISTONR902130025
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124785 | POSITIONING PISTON | 1 | ||
| R902124911 | ROD | 1 | ||
| R902025847 | RING | 2 | ||
| R902039649 | RING | 2 | ||
| R902025577 | RING | 2 | ||
| R902025578 | RING | 2 | ||
| R902025579 | RING | 2 | ||
| R902025576 | RING | 2 | ||
| R902025580 | RING | 2 | ||
| R902025581 | RING | 2 | ||
| R902600772 | LOCATING RING | 2 | ||
| R902124828 | SPRING DISK | 4 | ||
| R902124990 | SPACER BUSHING | 2 | ||
| R902124991 | SPACER BUSHING | 2 | ||
| R902124993 | SPACER BUSHING | 2 | ||
| R902124994 | SPACER BUSHING | 2 | ||
| R902124995 | SPACER BUSHING | 2 | ||
| R902124996 | SPACER BUSHING | 2 | ||
| R902124997 | SPACER BUSHING | 2 | ||
| R902124910 | COMPRESSION SPRING | 2 | ||
| R913000828 | RETAINING RING | 2 | ||
| R909086523 | O-RINGD | 1 |
