Assembly

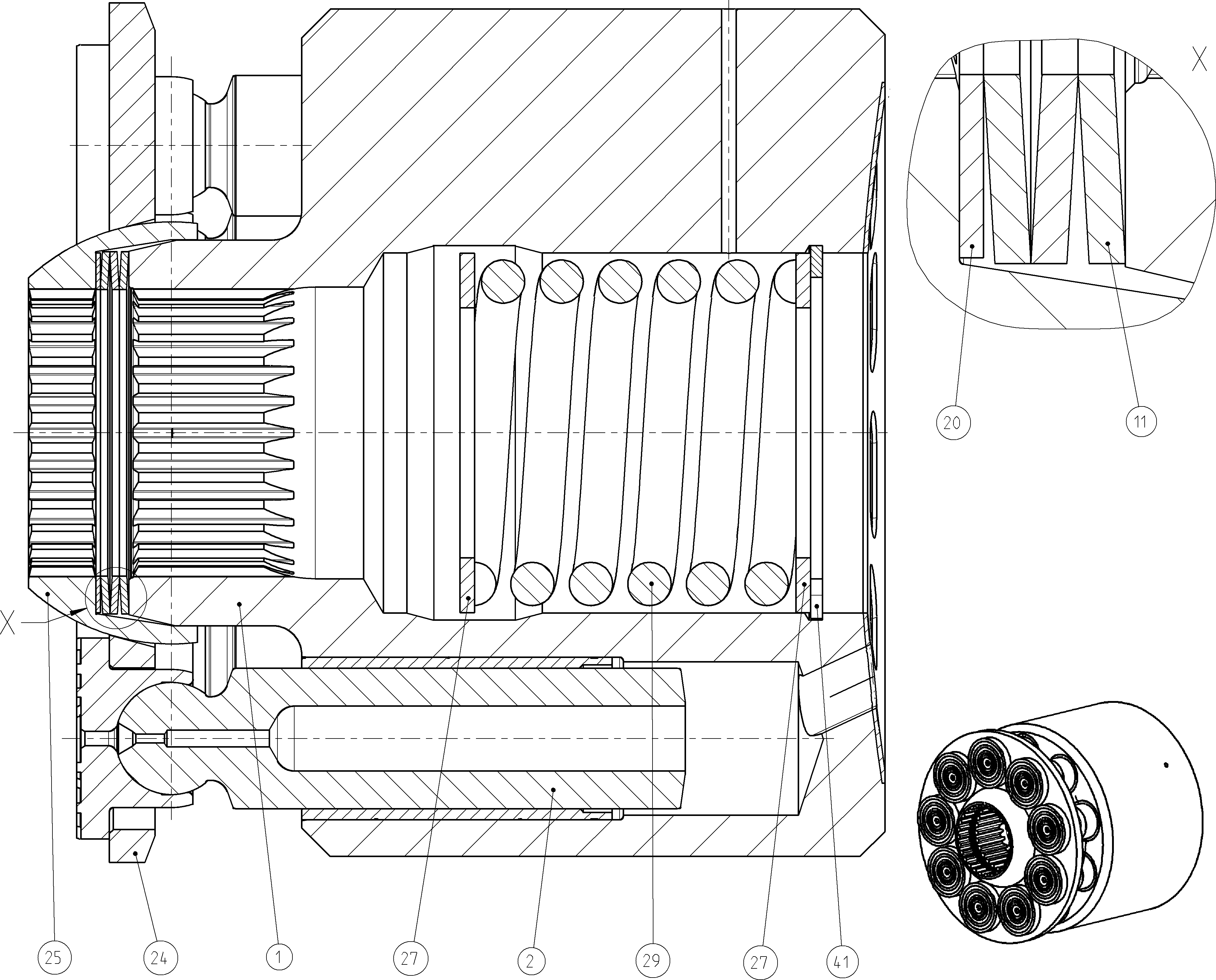

ROTARY GROUPR902130272
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902132725 | CYLINDER | 1 | ||
| R902157152 | PISTON PAD | 9 | ||
| R902121464 | CUP-SPRING STACK | 1 | ||
| R902121480 | SHIM RING | 1 | ||
| R902121479 | SHIM RING | 1 | ||
| R902121478 | SHIM RING | 1 | ||
| R902121477 | SHIM RING | 1 | ||
| R902205488 | RETAINING PLATE | 1 | ||
| R902121422 | RETAINING BALL | 1 | ||
| R902121476 | WASHER | 2 | ||
| R902121475 | COMPRESSION SPRING | 1 | ||
| R909153461 | RETAINING RING | 1 |
