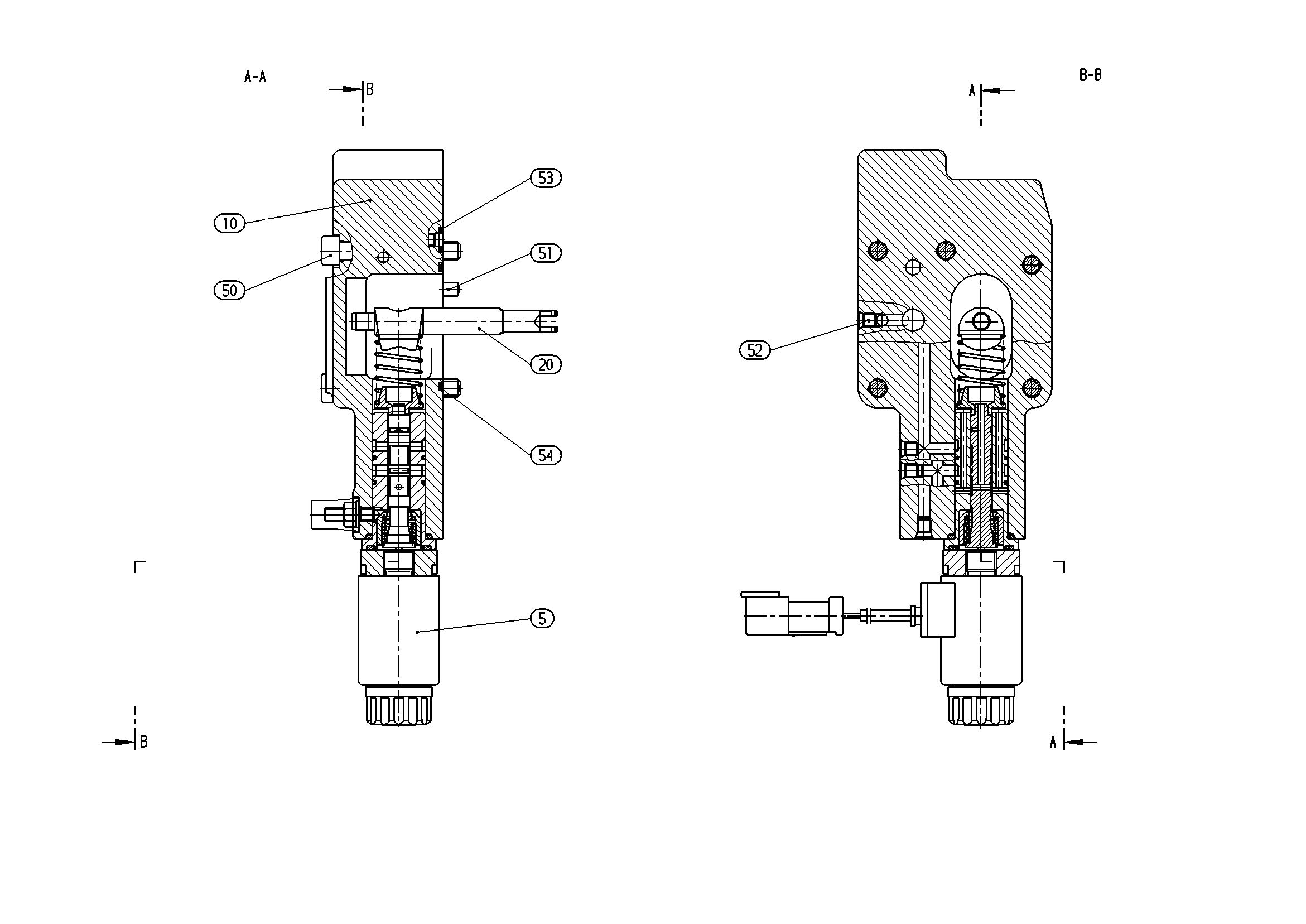

Assembly
REGULATORR902131082
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 5 | R902119489 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R902129290 | CONTROL HOUSING | 1 | ||
| R909449599 | BOLT | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R902602890 | R-RINGD | 3 | ||
| R902600656 | O-RING | 1 | ||
| 98 | R902602779 | FLANGE COVER | 1 |
