Assembly

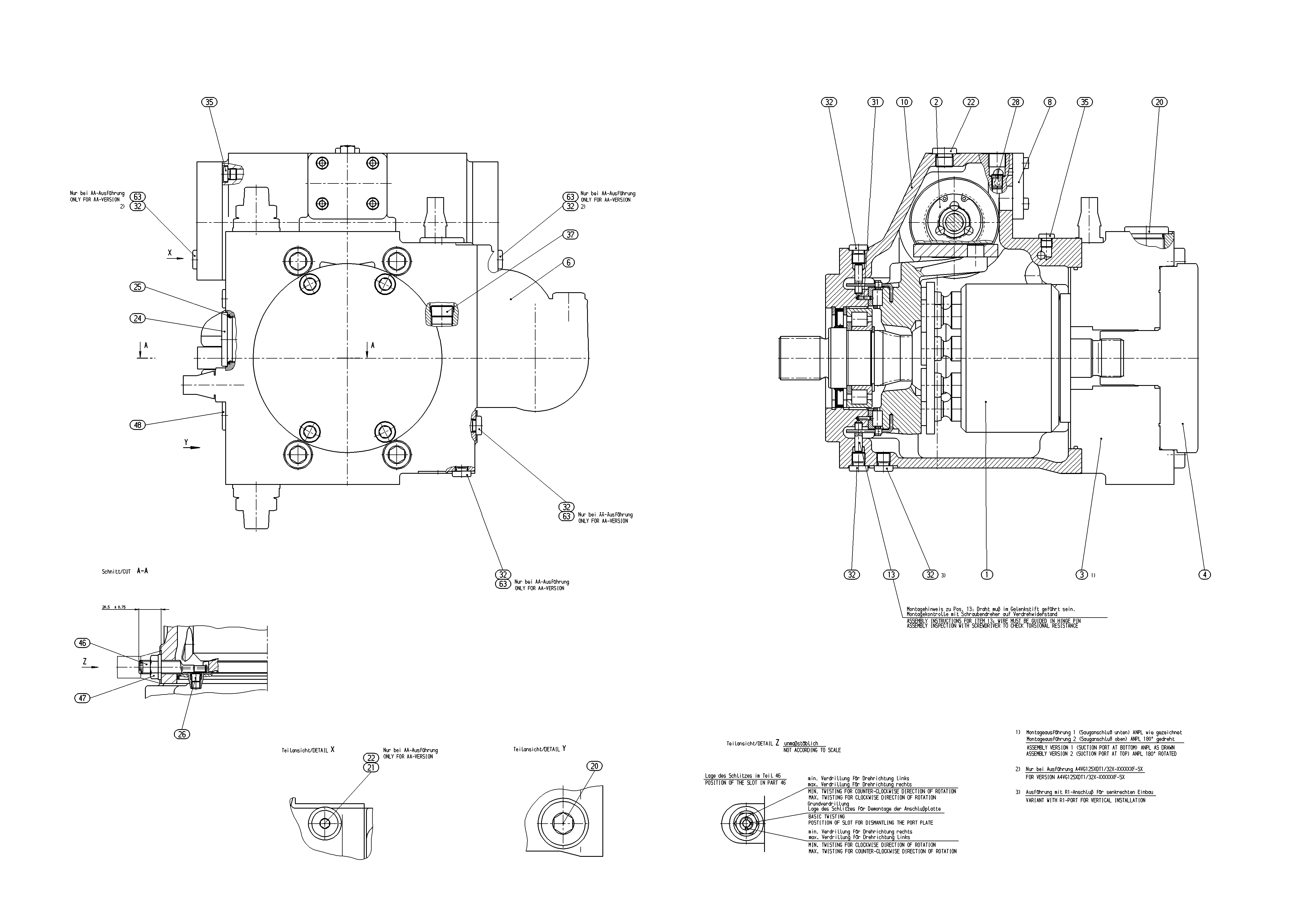

AXIAL-PISTON PUMPR902131277
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199753 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902025237 | CONTROL Assembly parts list →L | 1 | ||
| R902127491 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902122255 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902033754 | FILTER Assembly parts list →L | 1 | ||
| R909429211 | COVER Assembly parts list →L | 1 | ||
| R902010541 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R909153378 | SCREW PLUGD | 2 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909083229 | SCREW PLUG | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909426700 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 3 | ||
| R909156570 | SCREW PLUG | 1 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 2 |
