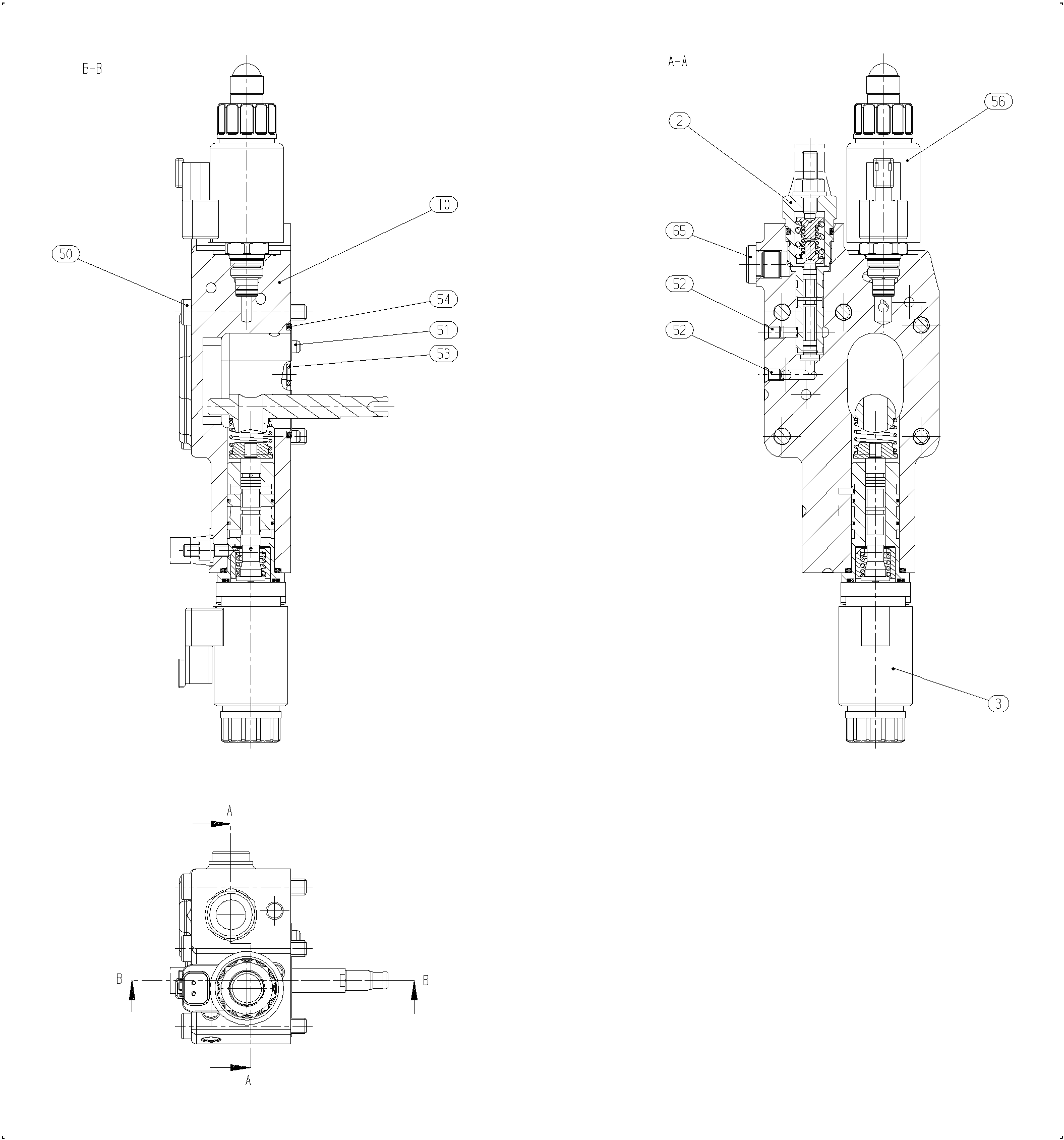

Assembly
REGULATORR902131669
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902158403 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 5 | R902083582 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R902129438 | CONTROL HOUSING | 1 | ||
| 20 | R909449599 | BOLT | 1 | |
| R909083045 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R901188705 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R909151979 | SCREW PLUG | 1 |
