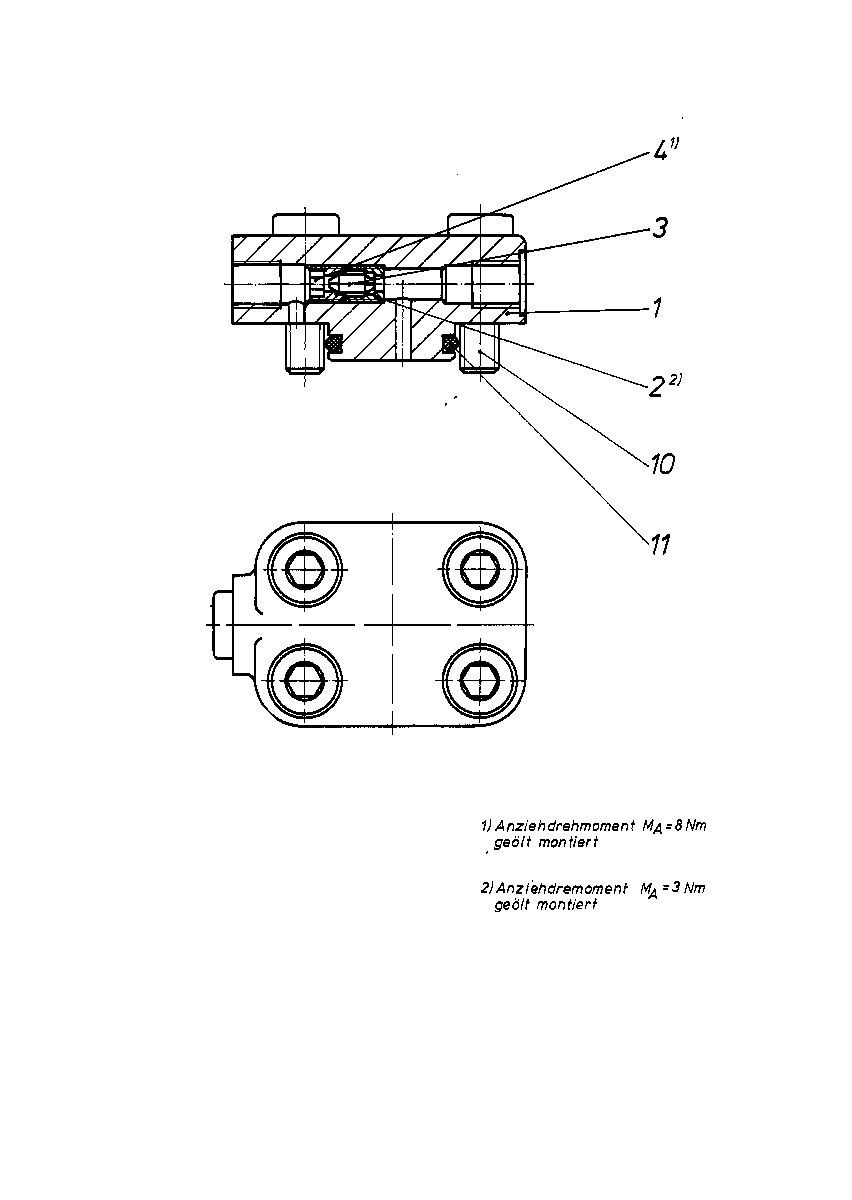

Assembly
COVERR902132410
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909445990 | COVER | 1 | ||
| 2 | R909400263 | THROTTLE SCREW | 1 | |
| R909410814 | THROTTLE PIN | 1 | ||
| 4 | R909400264 | THROTTLE SCREW | 1 | |
| R909831592 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909154053 | O-RINGD | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909445990 | COVER | 1 | ||
| 2 | R909400263 | THROTTLE SCREW | 1 | |
| R909410814 | THROTTLE PIN | 1 | ||
| 4 | R909400264 | THROTTLE SCREW | 1 | |
| R909831592 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909154053 | O-RINGD | 1 |
