Assembly

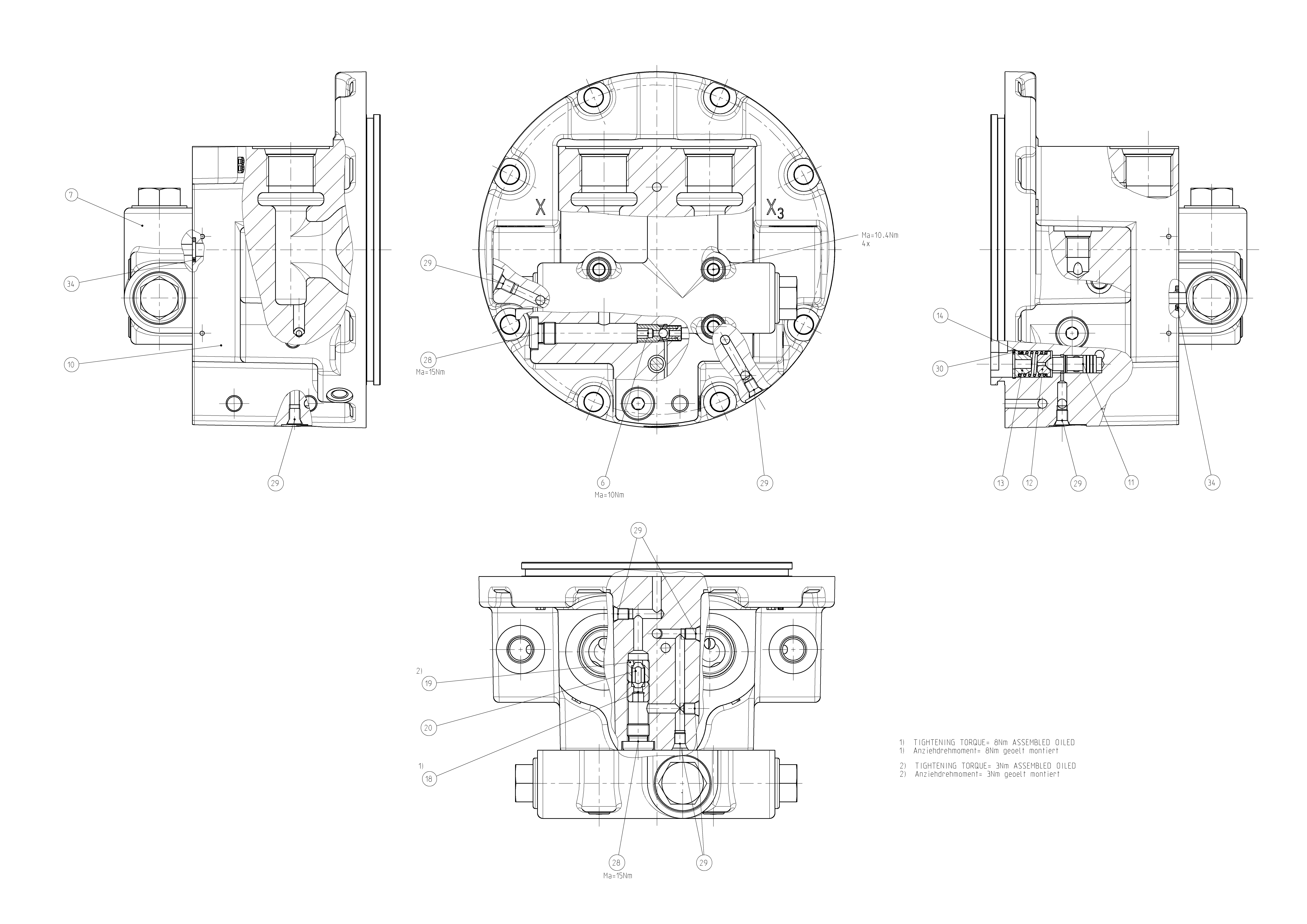

CONNECTION PLATER902132623
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902132624 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902078273 | CONNECTION PLATE | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R902020365 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R902243619 | THROTTLE SCREW | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400262 | THROTTLE PIN | 1 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909083379 | RETAINING RING | 1 | ||
| R910942133 | R-RING | 3 |
