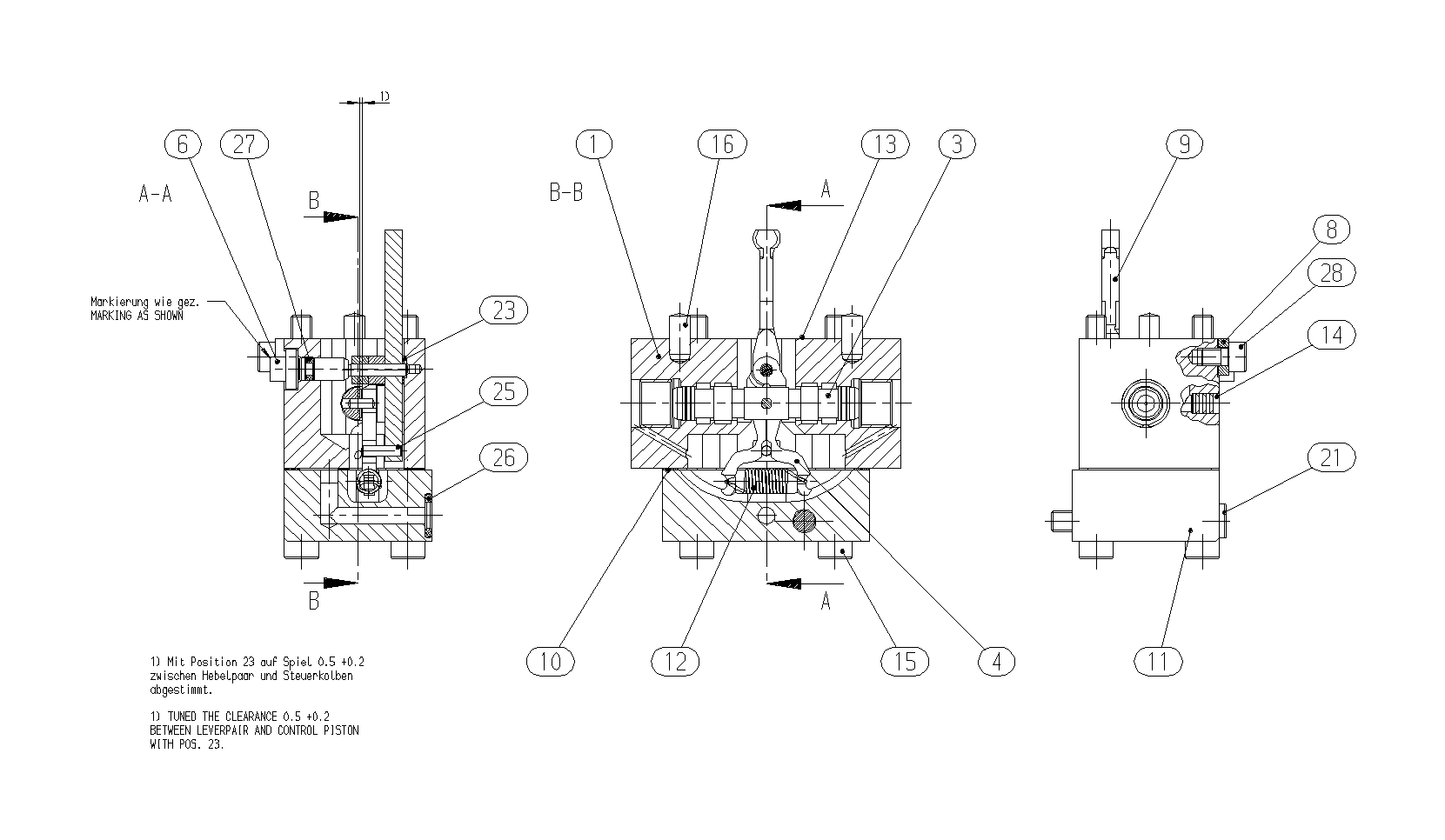

Assembly
BASIC UNITR902133503
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902099928 | HOUSING | 1 | ||
| R902107090 | CONTROL PISTON | 1 | ||
| R902162699 | LEVER PAIR | 1 | ||
| R902236102 | ECCENTRIC PIN | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902113672 | FEEDBACK LEVER | 1 | ||
| R902603830 | SEALD | 1 | ||
| R902046034 | CONNECTION COVER | 1 | ||
| R902068150 | EXTENSION SPRING | 1 | ||
| R902603829 | SEALD | 1 | ||
| R902603044 | SEALING PLUG | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R902051252 | WASHER | 1 | ||
| R902051253 | WASHER | 1 | ||
| R902051254 | WASHER | 1 | ||
| R902051255 | WASHER | 1 | ||
| R902051256 | WASHER | 1 | ||
| R902064222 | WASHER | 1 | ||
| R902600655 | O-RING | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 |
