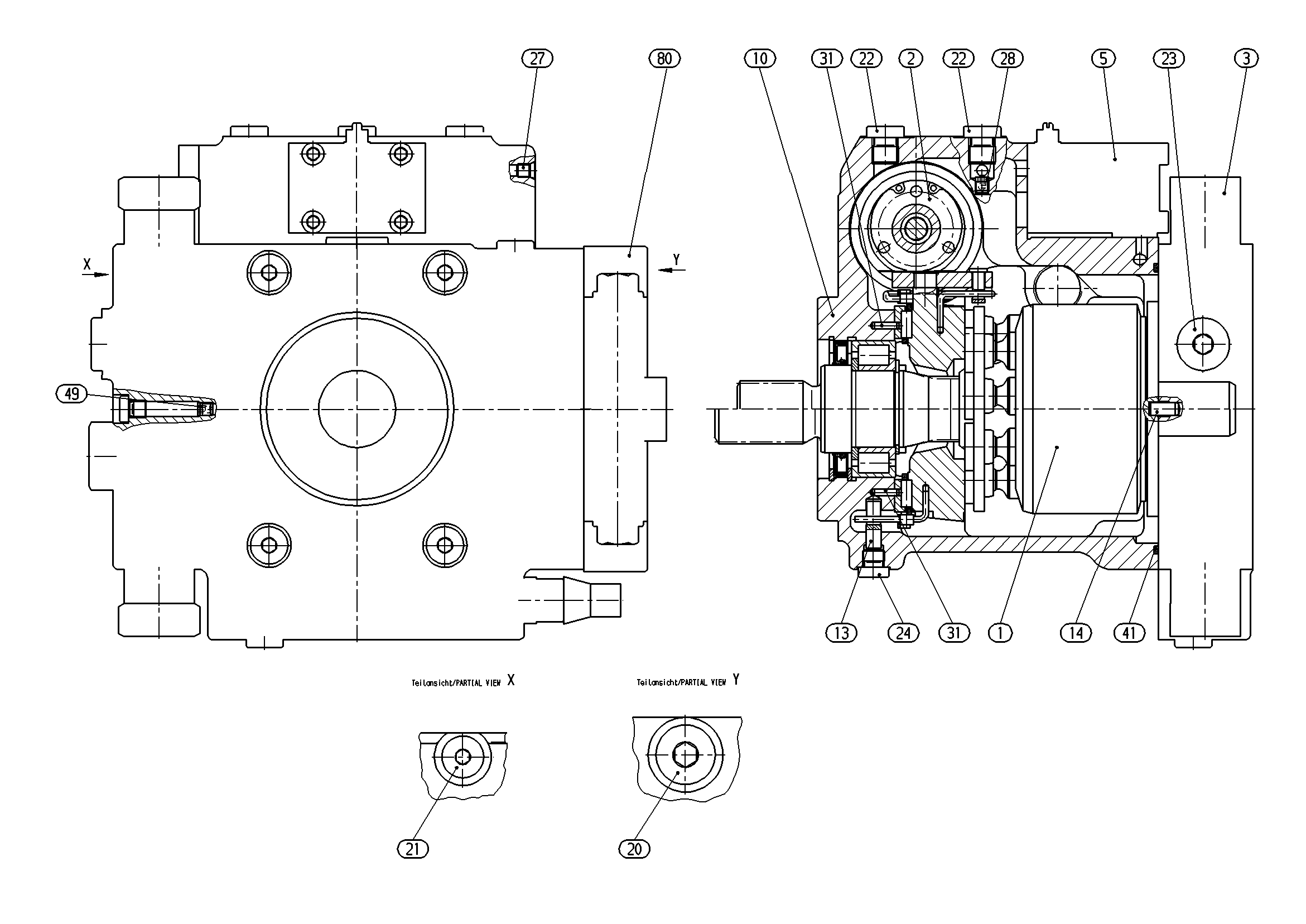

Assembly
AXIAL-PISTON PUMPR902134458
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124895 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902017327 | CONTROL Assembly parts list →L | 1 | ||
| R902134460 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902107326 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902015640 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R902066406 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 98 | R902095615 | SEAL KIT | 1 |
