Assembly

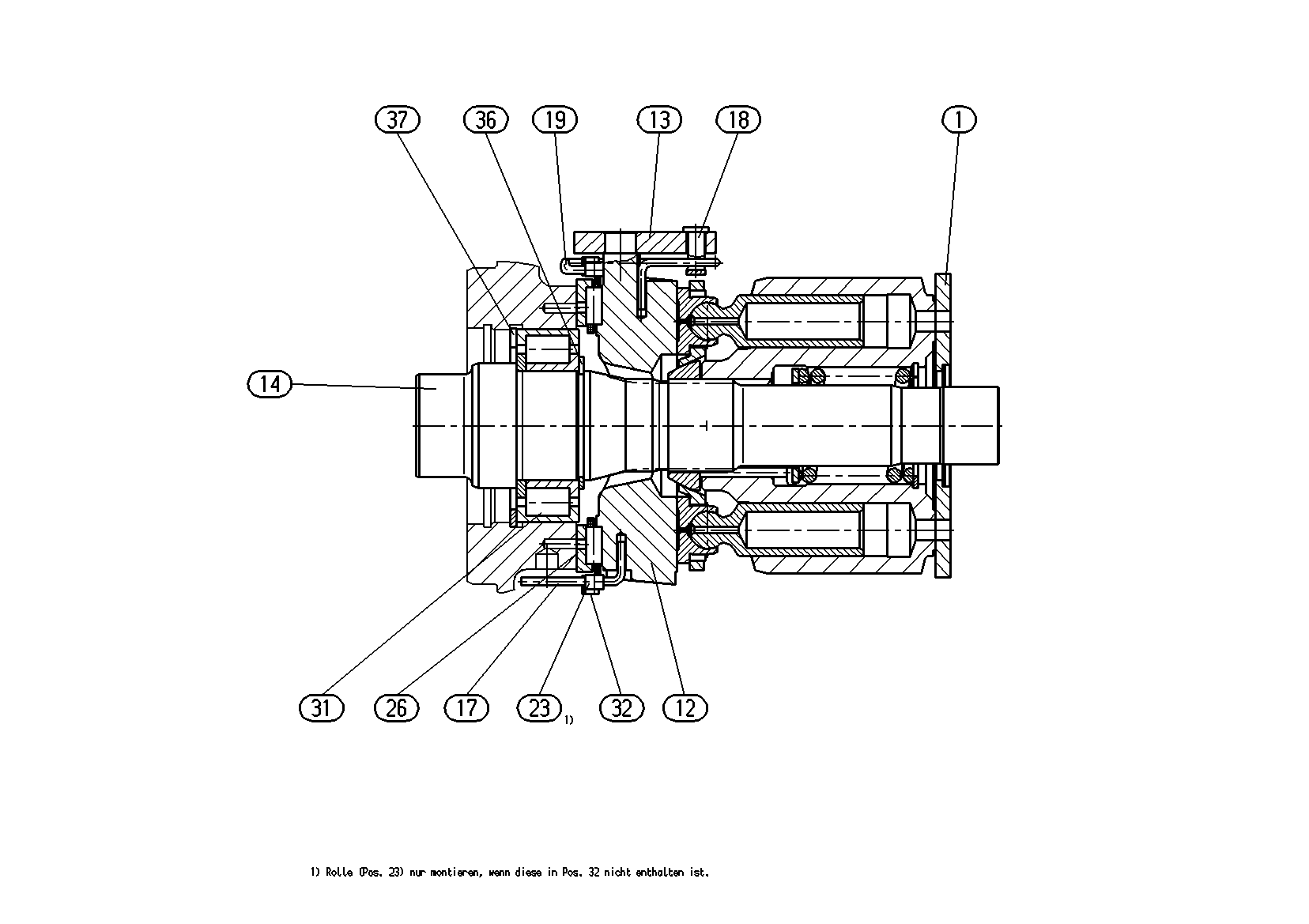

ROTARY GROUPR902136756
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902466702 | ROTARY GROUP Assembly parts list →L | 1 | |
| 12 | R909449544 | CRADLE | 1 | |
| 13 | R909449607 | SLIDER | 1 | |
| R902136723 | DRIVE SHAFT | 1 | ||
| R909408786 | WIRE | 1 | ||
| R909443447 | PIVOT PIN | 1 | ||
| R909449590 | WIRE | 1 | ||
| R902066592 | BEARING SHELL PAIR | 1 | ||
| R909156259 | CYL. ROLLER BEARING | 1 | ||
| R902603727 | CAGE PAIR | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| 39 | R909831280 | RETAINING RING | 1 |
