Assembly

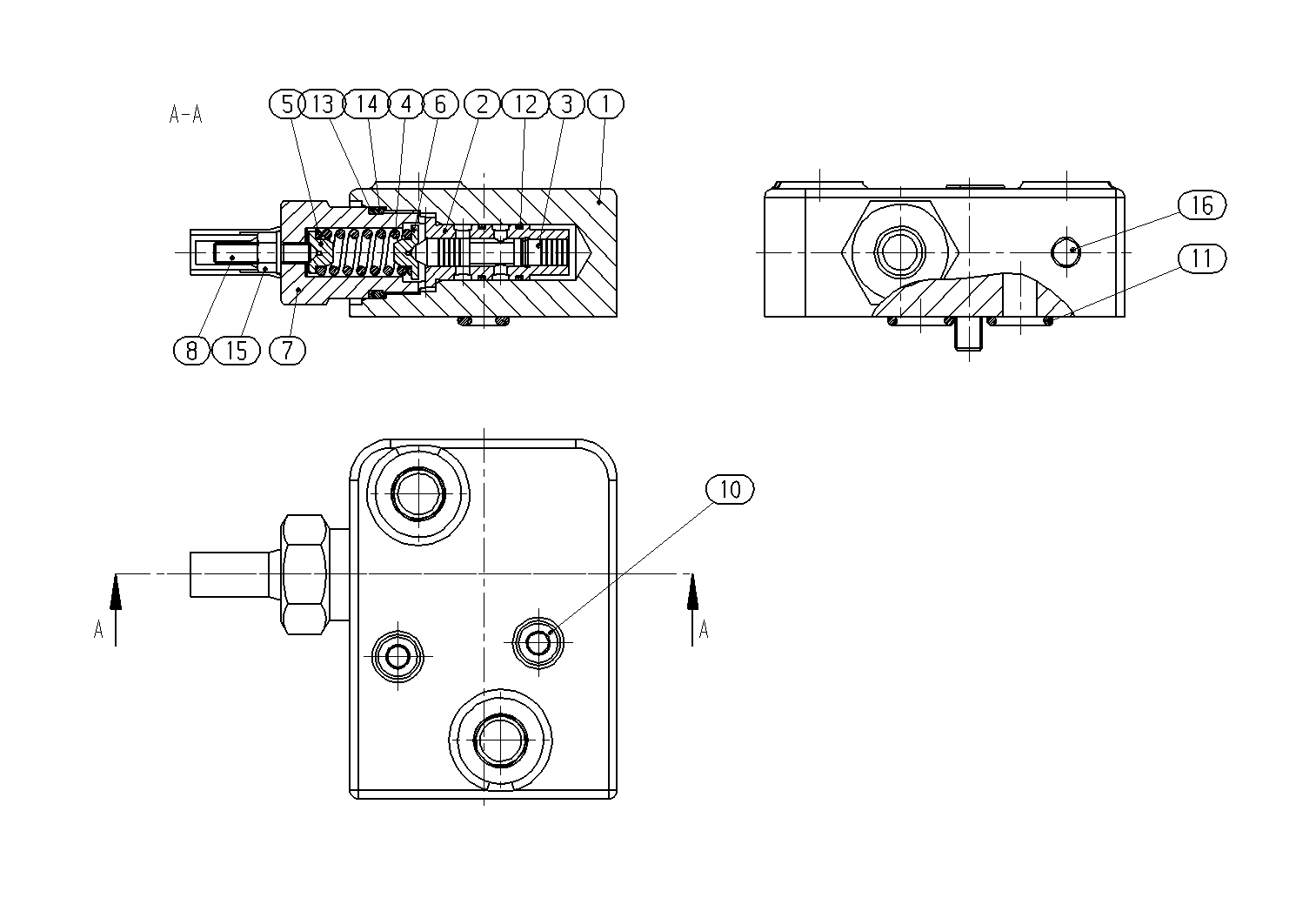

CONNECTION PLATER902138445
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902139522 | CONNECTION PLATE | 1 | ||
| R909444628 | CONTROL SLEEVE | 1 | ||
| R909444627 | CONTROL PISTON | 1 | ||
| R909426284 | COMPRESSION SPRING | 1 | ||
| R909421396 | SPRING DISK | 1 | ||
| R909421397 | SPRING DISK | 1 | ||
| R909439578 | SCREW PLUG | 1 | ||
| R909420991 | SETSCREW | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083753 | O-RING | 2 | ||
| R909830917 | R-RING | 2 | ||
| R909830510 | BACKUP RING | 1 | ||
| R909086517 | O-RING | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 |
