Assembly

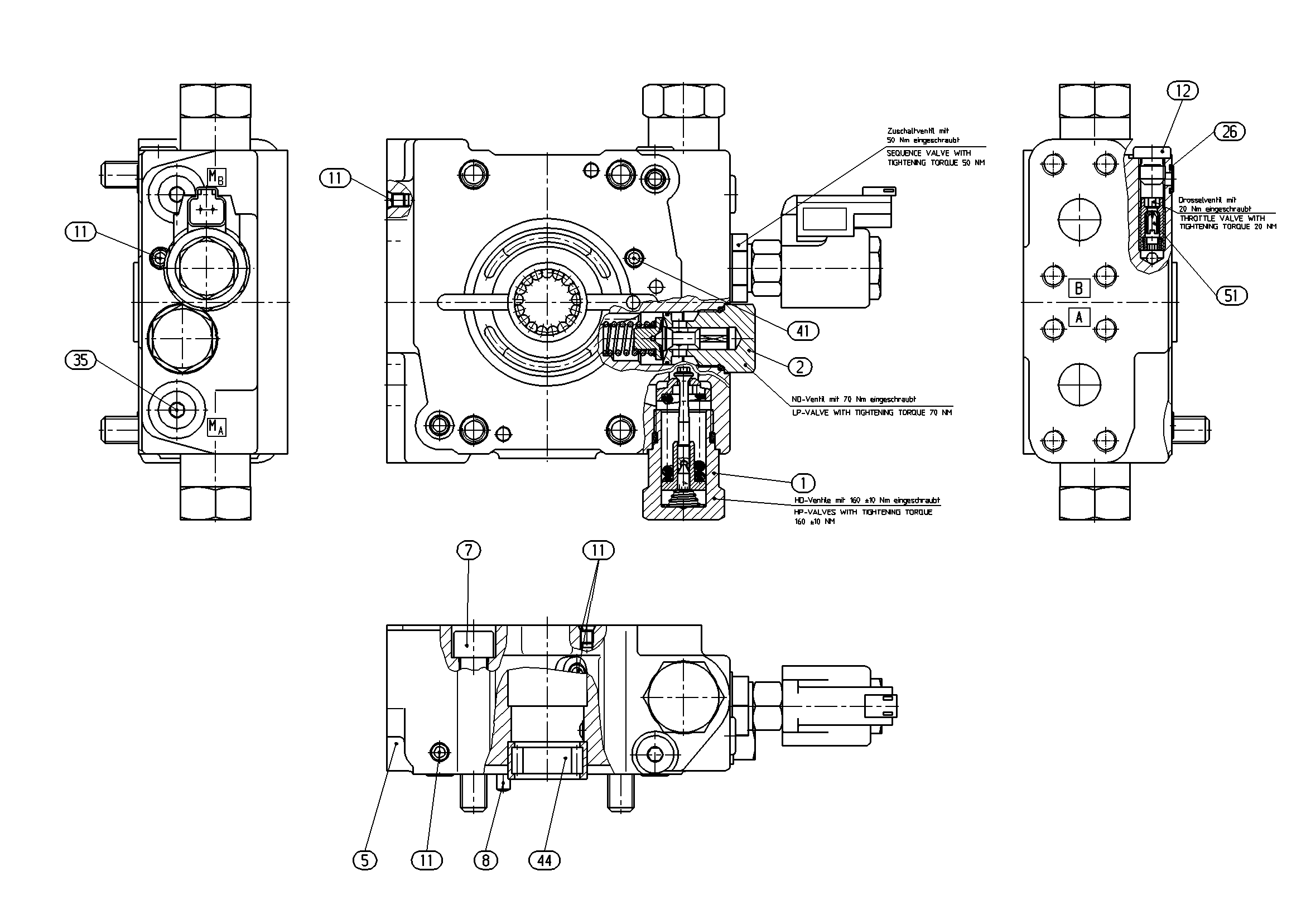

CONNECTION PLATER902146179
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902071190 | CONNECTION PLATE | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902025714 | SCREW PLUG | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| 50 | R901341679 | DIRECTIONAL SPOOL VALVE | 1 | |
| R902026941 | THROTTLE VALVE Assembly parts list →L | 1 |
