Assembly

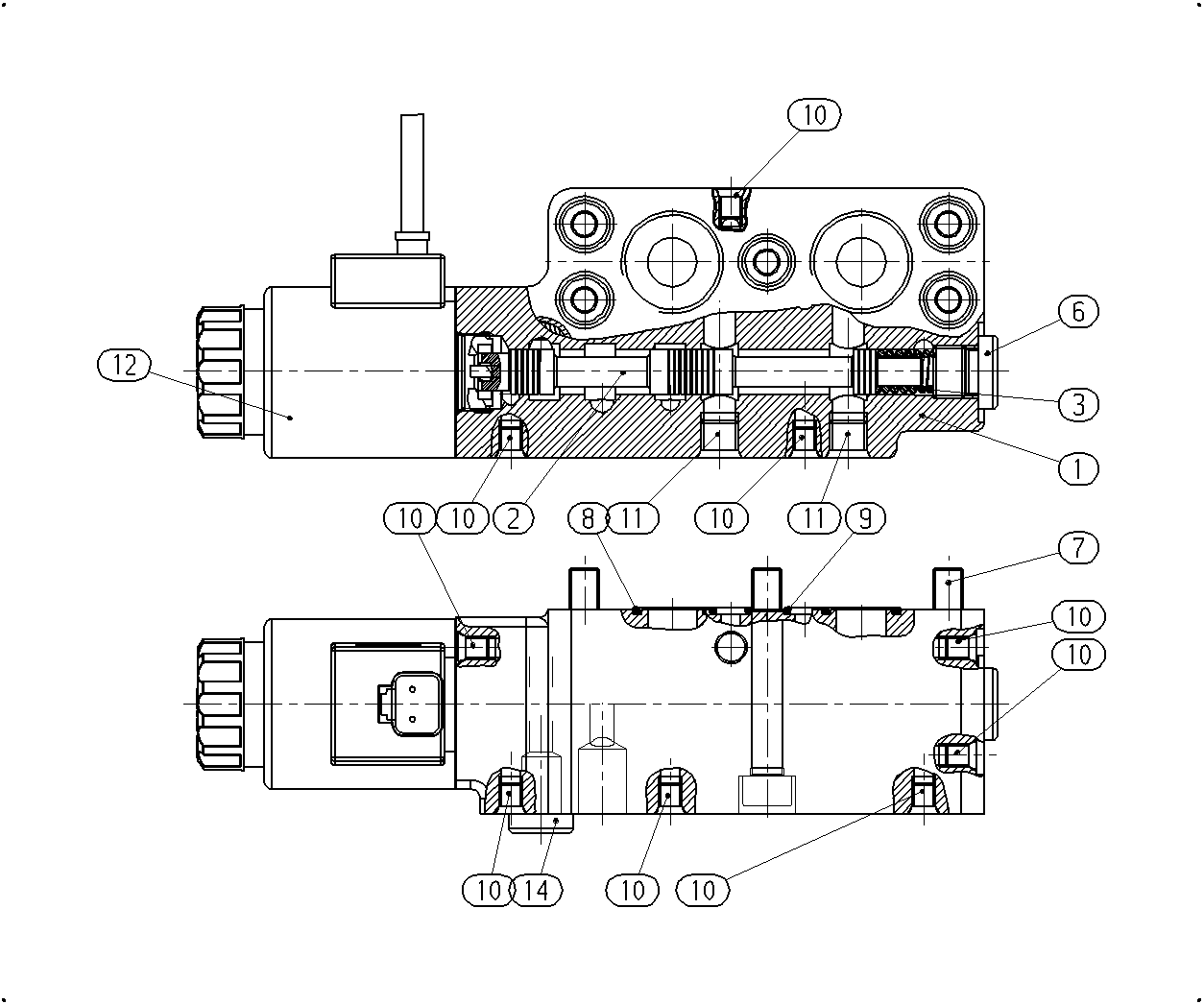

DIRECTIONAL-CONTROL VALVER902146627
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025710 | VALVE BLOCK | 1 | ||
| 2 | R902039692 | COMMAND PISTON | 1 | |
| R902049844 | COMPRESSION SPRING | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 5 | ||
| R909084939 | O-RINGD | 2 | ||
| 9 | R909086498 | O-RINGD | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUGD | 5 | ||
| 11 | R909831320 | DOUBLE BREAK-OFF PLUGD | 1 | |
| R902603559 | SWITCHING SOLENOID | 1 | ||
| 14 | R909151692 | SCREW PLUGD | 1 |
