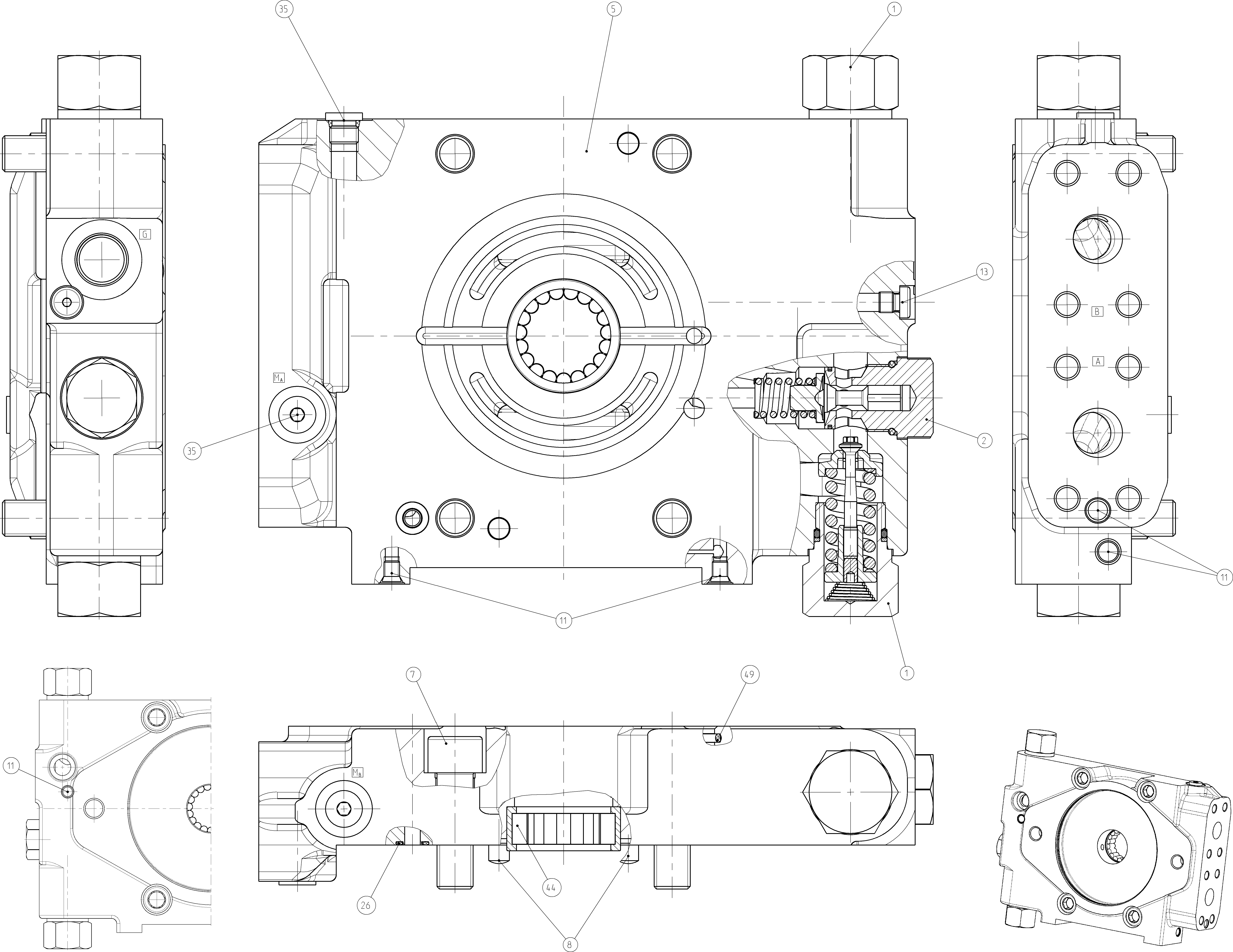

Assembly
CONNECTION PLATER902146923
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016386 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902146921 | CONNECTION PLATE | 1 | ||
| R909156851 | SOCKET HEAD CAP SCREW | 4 | ||
| R913033778 | STRAIGHT PIN | 2 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909156249 | CYL. ROLLER BEARING | 1 | ||
| R909085364 | O-RINGD | 1 |
