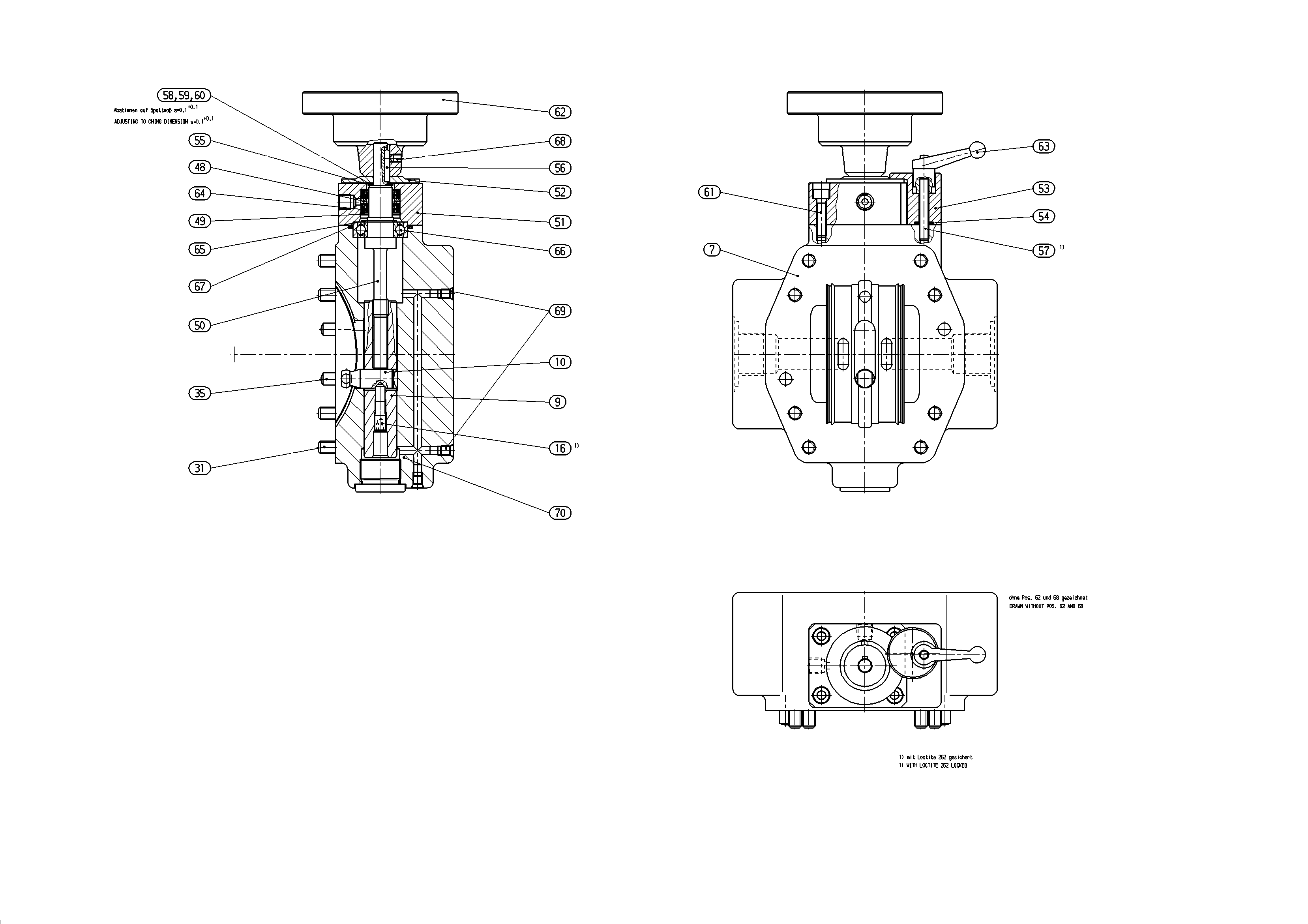

Assembly
CONTROLR902149474
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902191565 | COVER PLATE | 1 | ||
| R902082366 | POSITIONING PISTON | 1 | ||
| R902063822 | POSITIONING STUD | 1 | ||
| R902063825 | SETSCREW | 1 | ||
| 31 | R909083050 | SOCKET HEAD CAP SCREW | 6 | |
| 35 | R913009667 | STRAIGHT PIN | 2 | |
| R902047276 | SPACER RING | 1 | ||
| R909831081 | RETAINING RING | 1 | ||
| R902063820 | ADJUSTMENT SPINDLE | 1 | ||
| R902047274 | COVER | 1 | ||
| R909430630 | CLAMPING DISC | 1 | ||
| R902138314 | EXPANSION PIECE | 1 | ||
| 54 | R909411160 | DISC SPRING | 4 | |
| R909430627 | PARALLEL KEY | 1 | ||
| R909154057 | SETSCREW | 1 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 4 | ||
| R902138392 | HANDWHEEL Assembly parts list →L | 1 | ||
| R909830246 | CLAMPING LEVER | 1 | ||
| R909156373 | SHAFT SEALING RINGD | 2 | ||
| R909831079 | RETAINING RING | 1 | ||
| R902602036 | DEEP-GROOVE BALL BEARING | 1 | ||
| R902600667 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156989 | SCREW PLUG | 1 |
