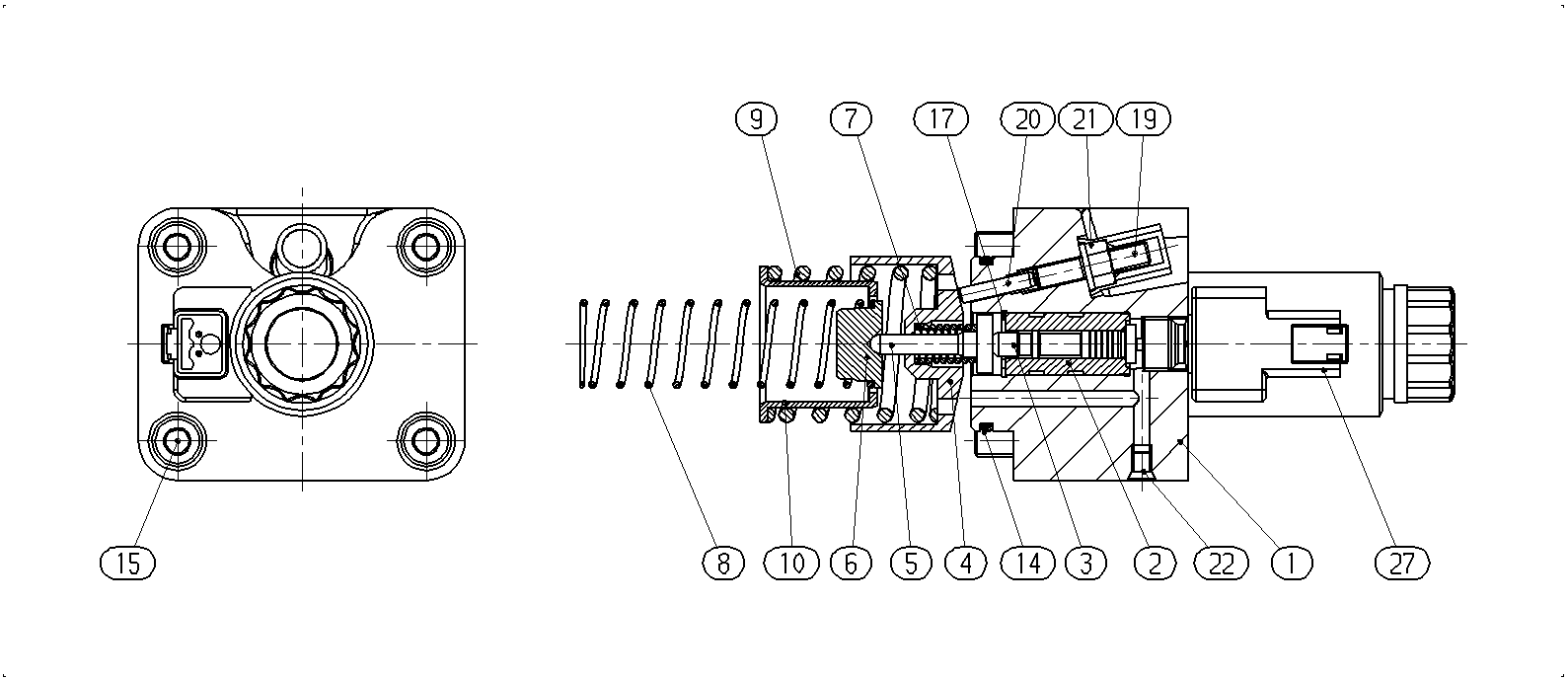

Assembly
CONTROL PARTR902151694
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902261641 | CONTROL HOUSING | 1 | ||
| R902110177 | CONTROL SLEEVE | 1 | ||
| R902110178 | CONTROL PISTON | 1 | ||
| R902006596 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R909921421 | COMPRESSION SPRING | 1 | ||
| R909432471 | COMPRESSION SPRING | 1 | ||
| R902006587 | COMPRESSION SPRING | 1 | ||
| R902006595 | SPRING DISK | 1 | ||
| R909156361 | O-RINGD | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902603443 | PROPORTIONAL SOLENOID | 1 |
