Assembly

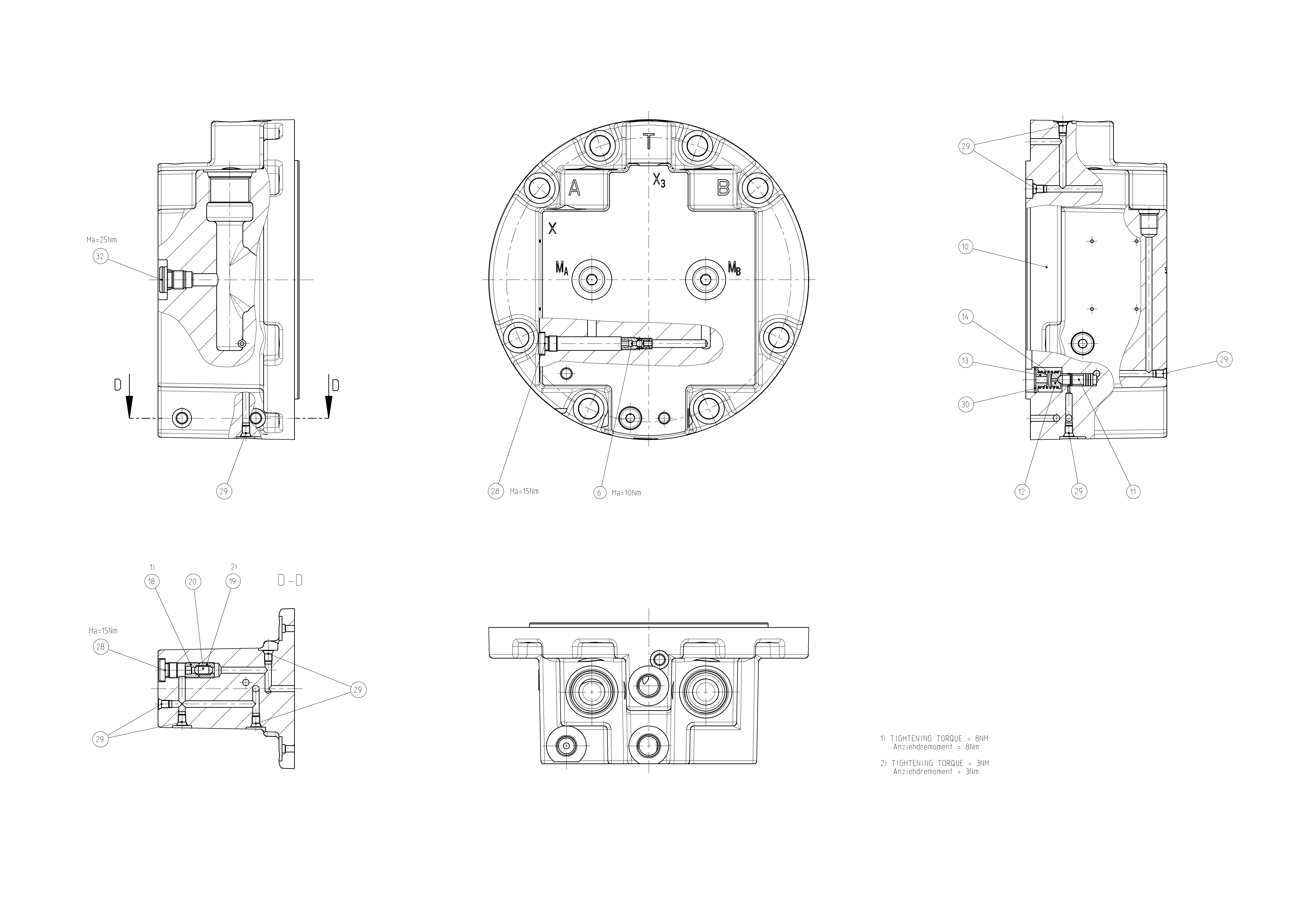

CONNECTION PLATER902152785
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902152784 | CONNECTION PLATE | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R909426136 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R902243619 | THROTTLE SCREW | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400262 | THROTTLE PIN | 1 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909831743 | SCREW PLUG | 2 |
