Assembly

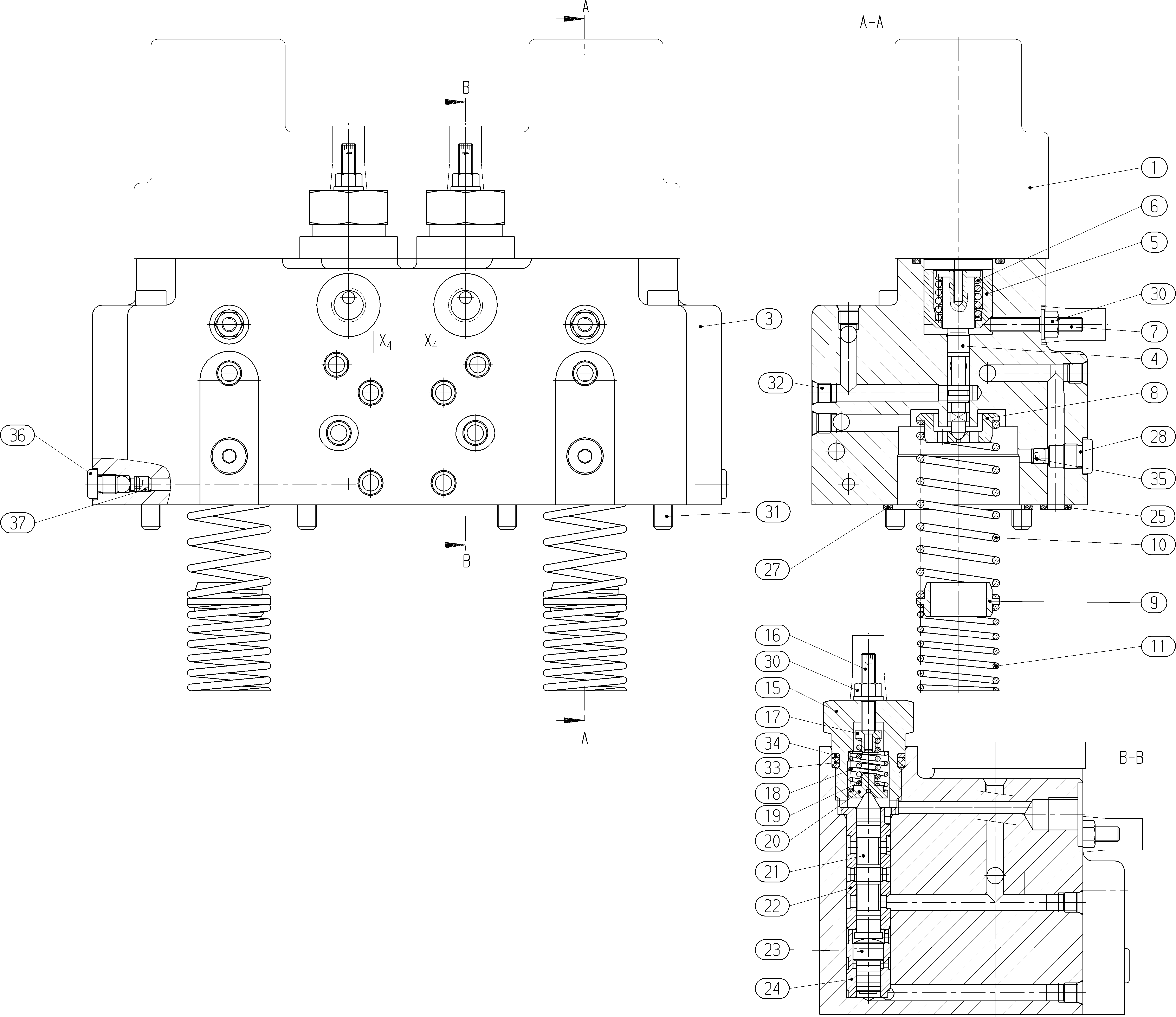

CONTROL UNITR902153692
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902101541 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902153614 | CONTROL HOUSING | 1 | ||
| R909449944 | CONTROL PISTON | 2 | ||
| R909449344 | SPRING BUSH | 2 | ||
| R909651102 | COMPRESSION SPRING | 2 | ||
| R909420992 | SETSCREW | 2 | ||
| R902099418 | SPRING DISK | 2 | ||
| R909432511 | SPRING DISK | 2 | ||
| R909432560 | COMPRESSION SPRING | 2 | ||
| R909432559 | COMPRESSION SPRING | 2 | ||
| R909435552 | SCREW PLUG | 2 | ||
| R909421402 | SETSCREW | 2 | ||
| R902221507 | SPRING DISK | 2 | ||
| R909410091 | COMPRESSION SPRING | 2 | ||
| R909432906 | COMPRESSION SPRING | 2 | ||
| R909418698 | SPRING DISK | 2 | ||
| R902009684 | CONTROL PISTON | 2 | ||
| R909431037 | CONTROL SLEEVE | 2 | ||
| R902033448 | POSITIONING PISTON | 2 | ||
| R902163546 | ADJUSTING BUSH | 2 | ||
| R902600655 | O-RINGD | 4 | ||
| R909151810 | O-RING | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909152425 | SEALING NUTD | 4 | ||
| R909084382 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 14 | ||
| R909083797 | O-RING | 2 | ||
| R909087626 | BACKUP RING | 2 | ||
| R909156490 | NOZZLE | 2 | ||
| R909154024 | SCREW PLUG | 2 | ||
| R909156492 | NOZZLE | 2 |
