Assembly

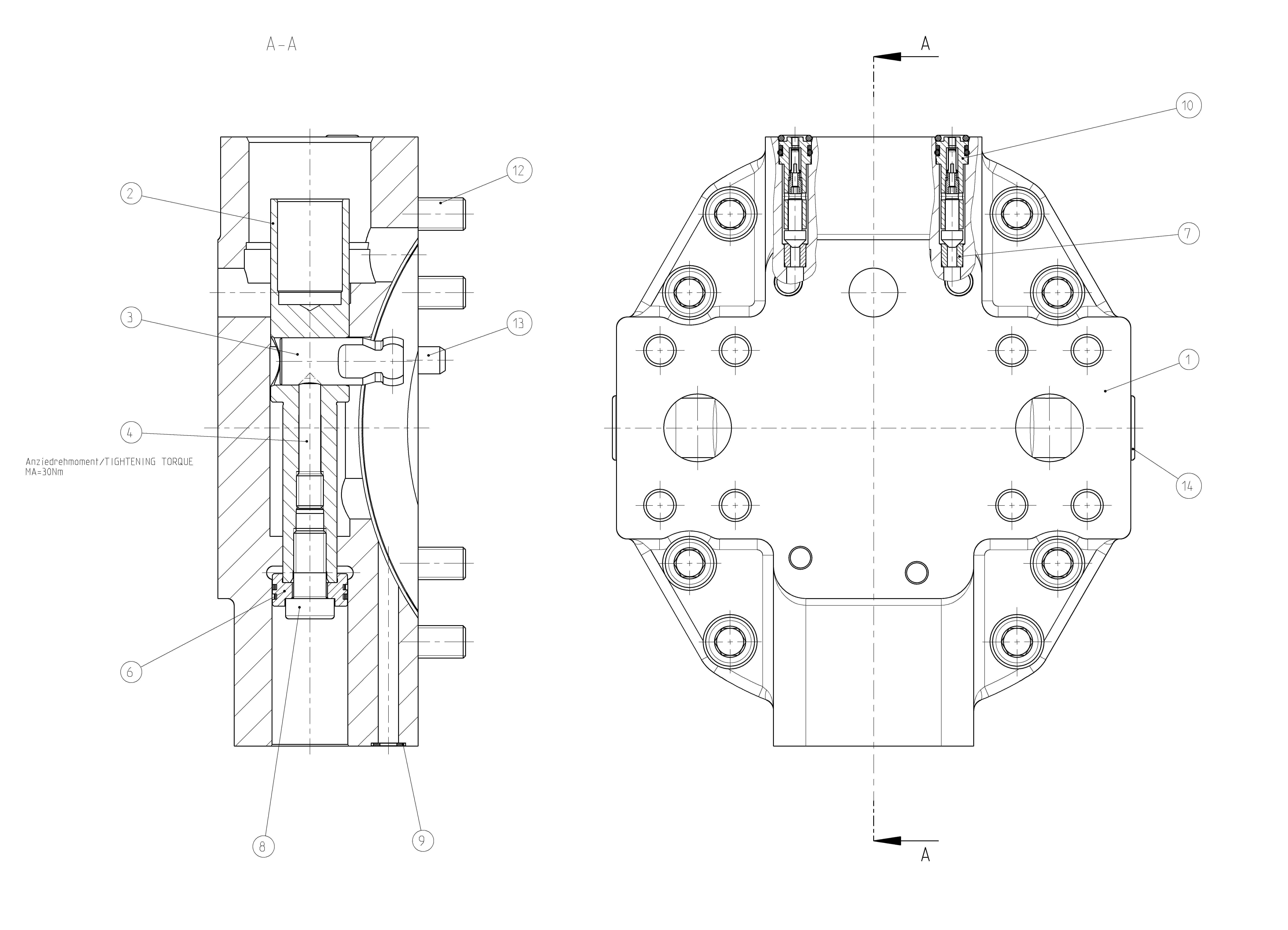

COVER PLATER902156492
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902156494 | COVER PLATE Assembly parts list →L | 1 | ||
| R902101484 | POSITIONING PISTON | 1 | ||
| R909422217 | POSITIONING STUD | 1 | ||
| R902101485 | SETSCREW | 1 | ||
| R902102903 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909083204 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902132472 | CHECK VALVE | 2 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R902601709 | SCREW PLUGD | 2 | ||
| 15 | R909086487 | O-RINGD | 3 |
