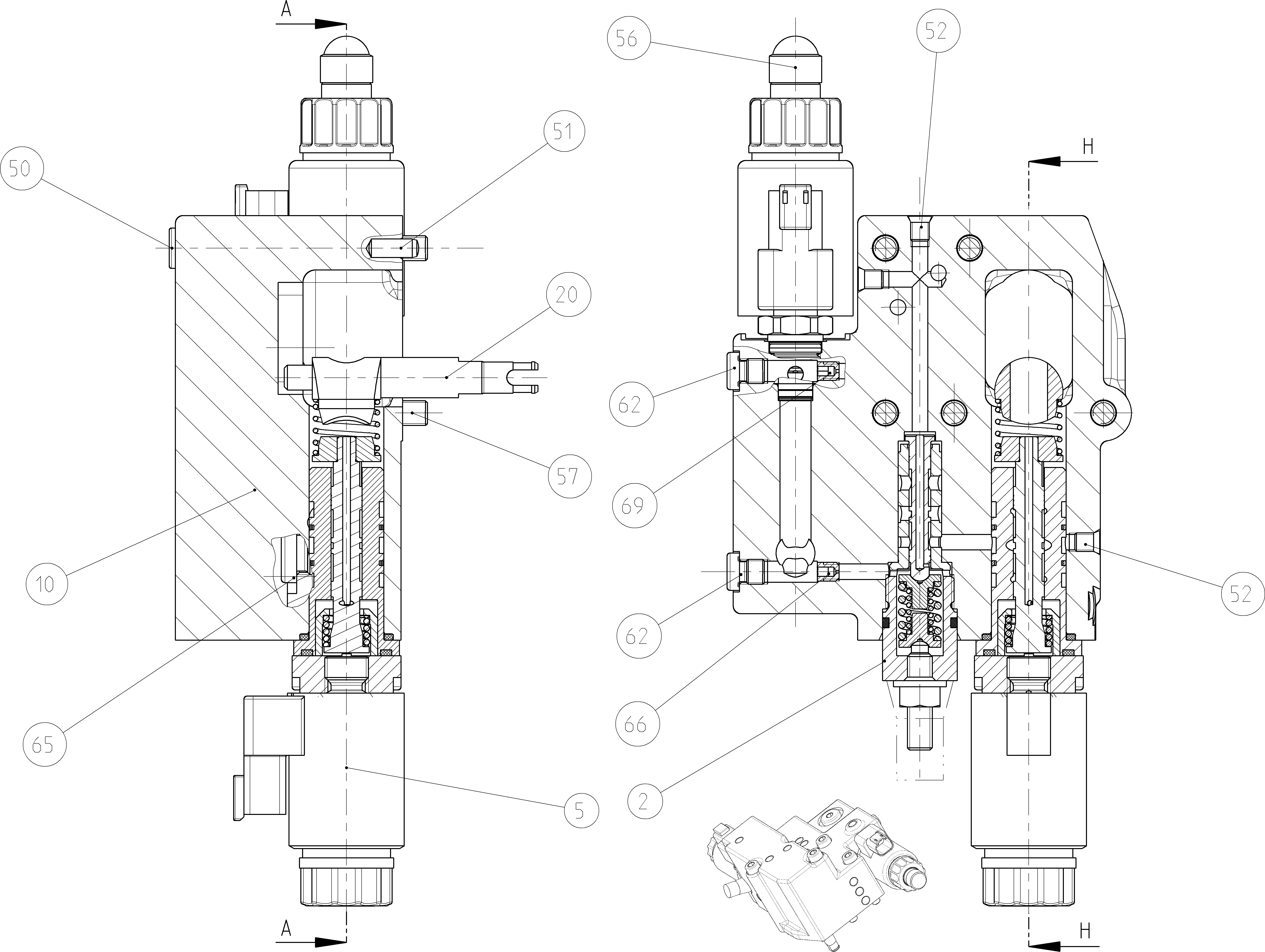

Assembly
REGULATORR902157624
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902159014 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902083580 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902273775 | CONTROL HOUSING | 1 | ||
| R909922132 | BOLT | 1 | ||
| R909083050 | SOCKET HEAD CAP SCREW | 2 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R901188705 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 3 | ||
| R909154024 | SCREW PLUG | 2 | ||
| 63 | R909154024 | SCREW PLUG | 1 | |
| R909151979 | SCREW PLUG | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| 98 | R902002476 | SEAL KITD | 1 |
