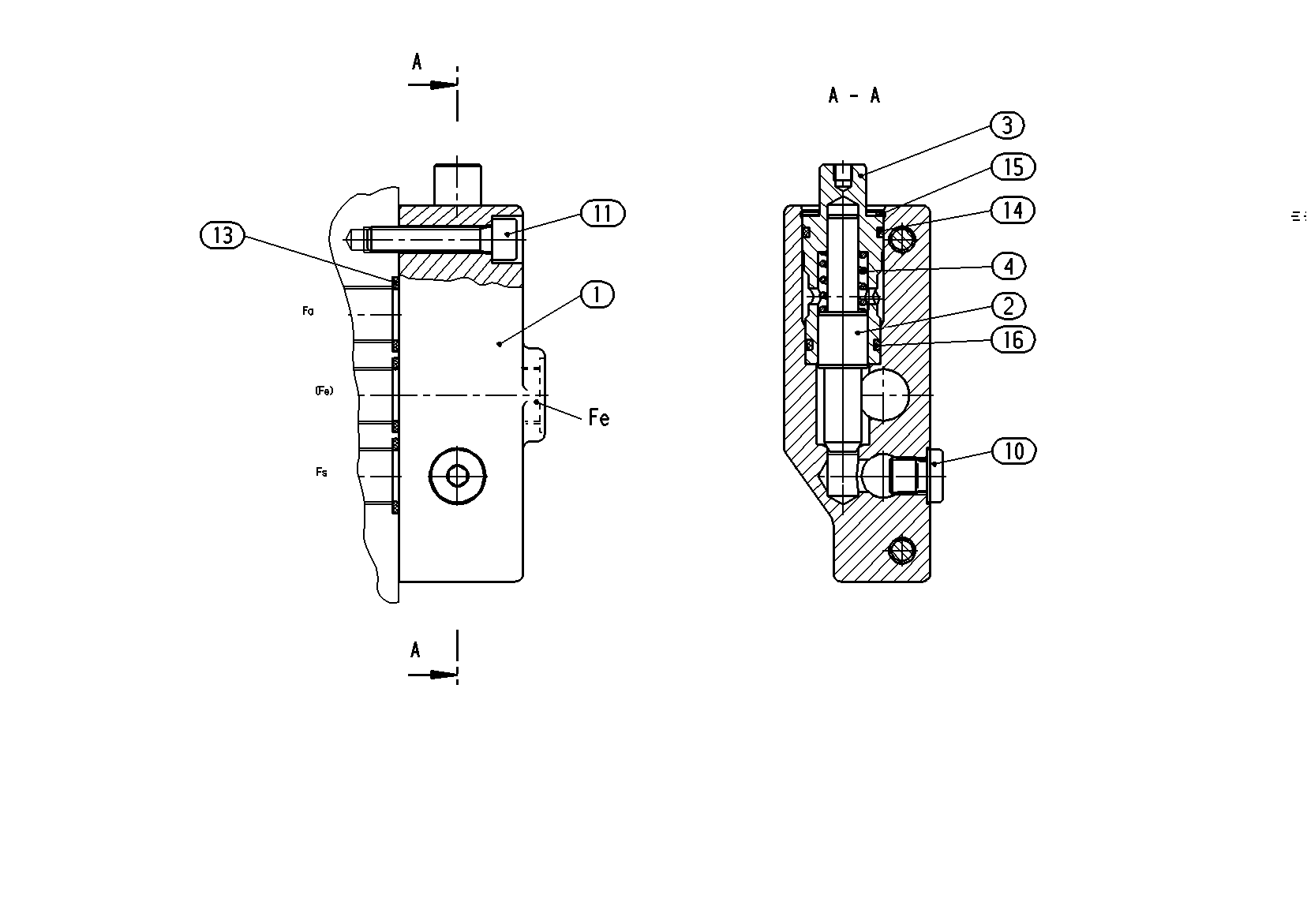

Assembly
FILTERING PLATER902159744
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902066097 | FILTER CONNECTION PLATE | 1 | |
| R902026590 | VALVE SPOOL | 1 | ||
| R902066092 | PISTON GUIDE | 1 | ||
| R902159741 | COMPRESSION SPRING | 1 | ||
| R909151692 | SCREW PLUG | 1 | ||
| 11 | R909083042 | SOCKET HEAD CAP SCREW | 2 | |
| 13 | R909083758 | O-RINGD | 3 | |
| R909083760 | O-RINGD | 1 | ||
| R909083388 | RETAINING RING | 1 | ||
| R909083758 | O-RINGD | 1 |
