Assembly

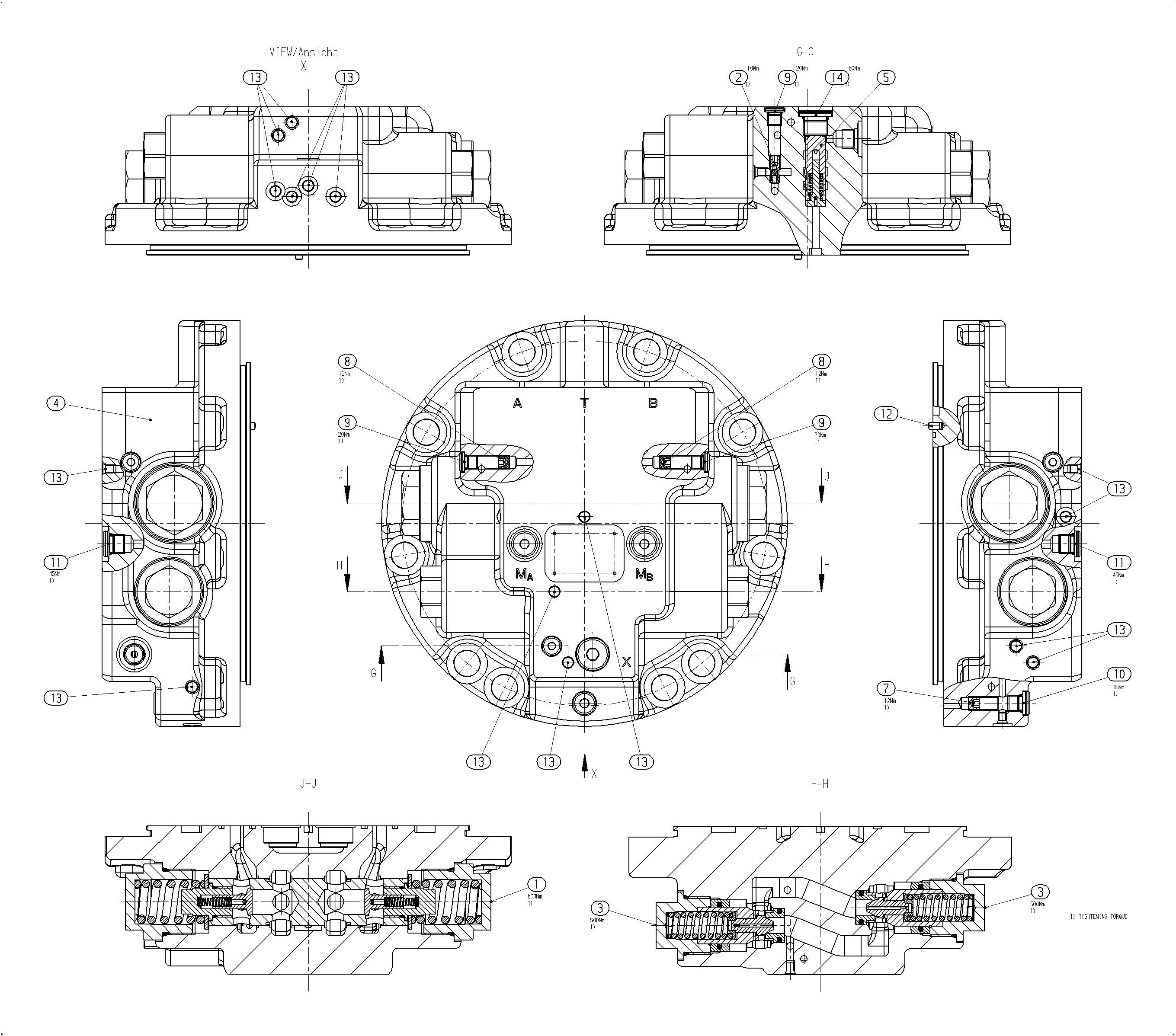

CONNECTION PLATER902161886
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902146512 | BRAKE VALVE Assembly parts list →L | 1 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902152702 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902161885 | CONNECTION PLATE | 1 | ||
| R902161933 | VALVE Assembly parts list →L | 1 | ||
| R902157423 | NOZZLE | 1 | ||
| R902157422 | NOZZLE | 2 | ||
| R902602216 | SCREW PLUG | 3 | ||
| R909831743 | SCREW PLUG | 1 | ||
| R909831482 | SCREW PLUG | 2 | ||
| R909157936 | STRAIGHT PIN | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R902601709 | SCREW PLUG | 1 |
